제품정보 | Model
(스타엠 No.101 C형비트| Star-m No.101 concave bit)
특징(Features)
- 날을 오목 곡면으로 만들어 버가 잘 나오지 않는 절삭력이 탁월한 드릴비트입니다.
- It's a has great cutting
- Blade is concave so it's barely get burr
사양(Specification)
적용재(Usage) | 일반 목재 대나무 플라스틱 Wood Bamboo Plastic |
| 적정 회전수(Rpm Range) | 2,500회전/분 이하 (Less than 2,500rpm) |

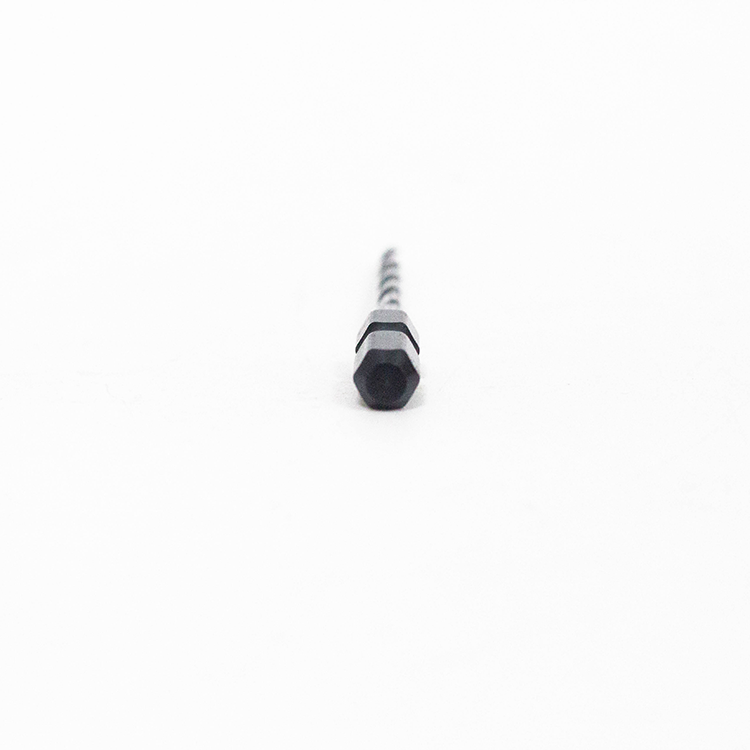

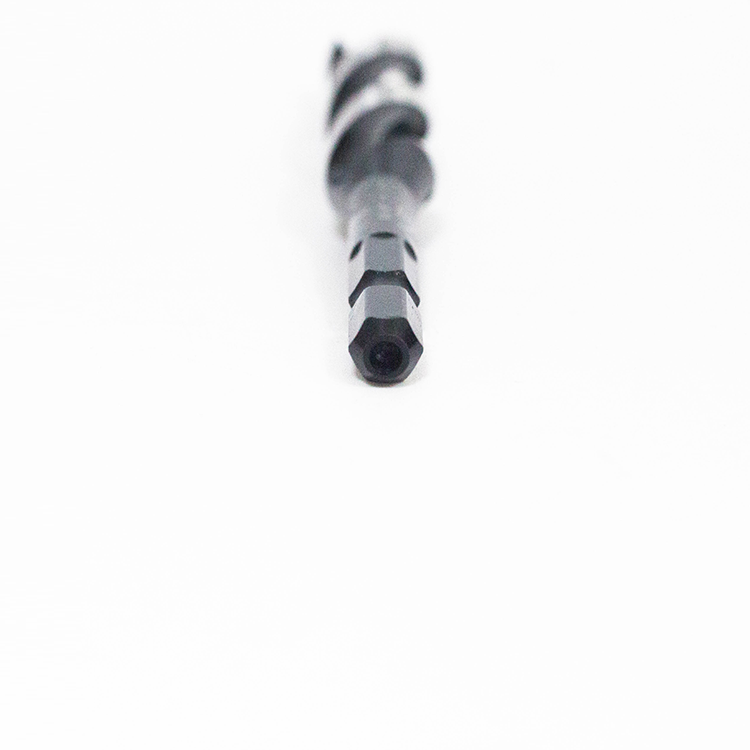

| 축 마크를 보는 방법(Shank Shape) | :육각축(Hexagon) |
| 주의사항(Caution) | 재질에 따라 버가 크게 나오는 경우가 있으므로 주의해 주십시오 Please be careful as the burrs my come out large depending on the material |

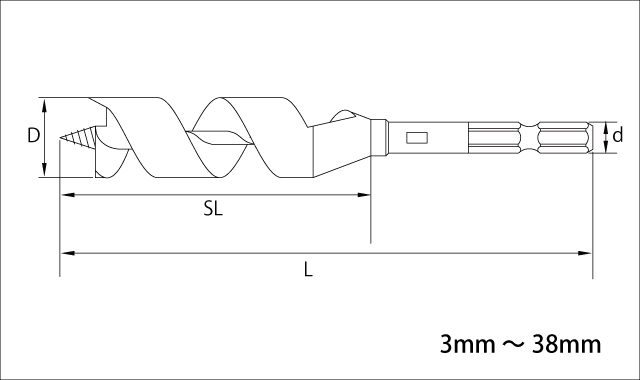

사이즈(Sizes)


사이즈(Size):D
전장(Overall Length) : L
나사 길이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
| Product No. | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|
| s1013 | 80 | 45 | 6.35 |
| s1014 | |||
| s1015 | 90 | 50 | |
| s1016 | |||
| s1017 | |||
| s1018 | |||
| s1019 | 100 | 60 | |
| s10110 | |||
| s10111 | |||
| s10112 |
| s10113 | 120 | 70 | 6.35 |
| s10114 | |||
| s10115 | |||
| s10116 | |||
| s10117 | |||
| s10118 | |||
| s10119 | |||
| s10120 | 130 | 80 | |
| s10121 | |||
| s10122 |
| s10123 | 130 | 80 | 6.35 |
| s10124 | |||
| s10125 | 8.9 | ||
| s10126 | |||
| s10127 | |||
| s10128 | |||
| s10129 | |||
| s10130 |

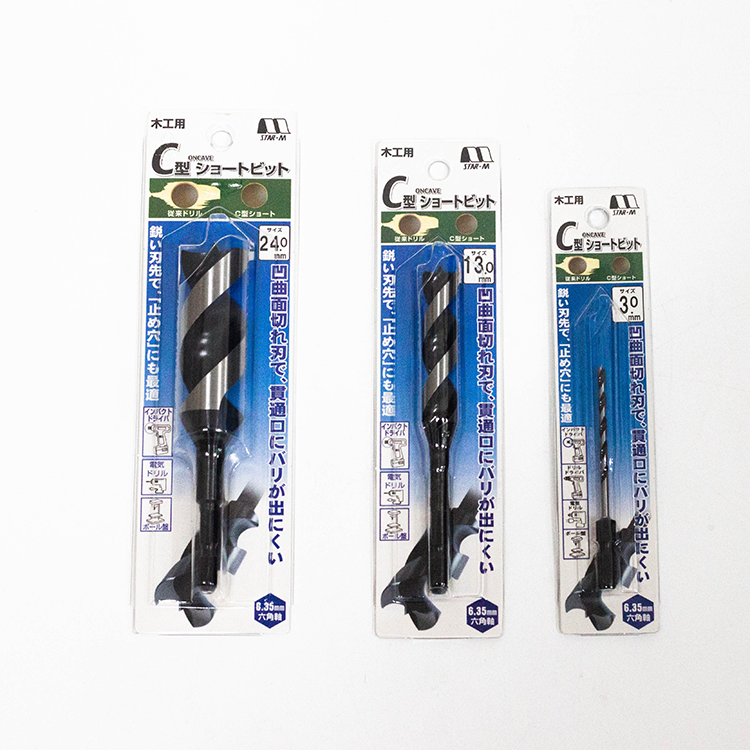

1박스: 6입
QTY(Inner Box: 6pcs
연마(re-sharpen)
컷팅 엣지를 날카롭게하는 방법(Sharpening the cutting edge)

①컷팅 엣지가 45도가 되도록 제품을 기울여 평행하게 줄을 맞춘다
①Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge.

②마모된 컷팅엣지를 새로운 날이 나올 때까지 줄을 댄다
② Touch the left edge of the file to the bit's spine which will be used as a guide. File forward repeadtedly only. Do not file in reverse
스푸어 날을 날카롭게하는 방법(Sharpening the spur)

① 스푸어 날의 안쪽을 연마하고 마모된 부분이 없어질 때 까지 연마한다
① If the spur has any burrs, lightly file them to create a clean edge.

② 스푸어 날은 안쪽이 둥글게 되도록 줄을 대고, 뒤에서부터 바깥쪽으로 버(Burr)를 제거하며 마무리한다
②Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
제조사(Maker)
스타엠 | Star-m (Made in Japan) |

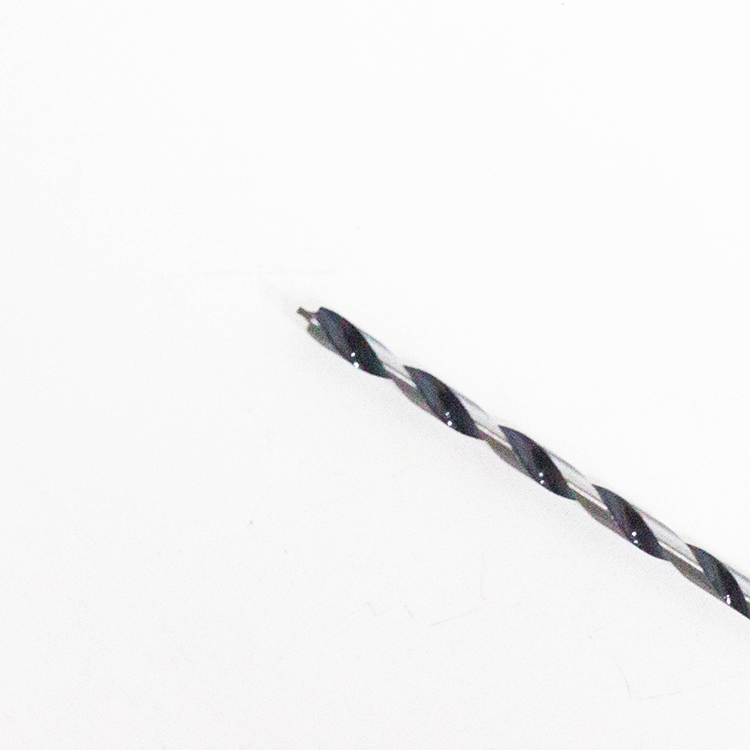

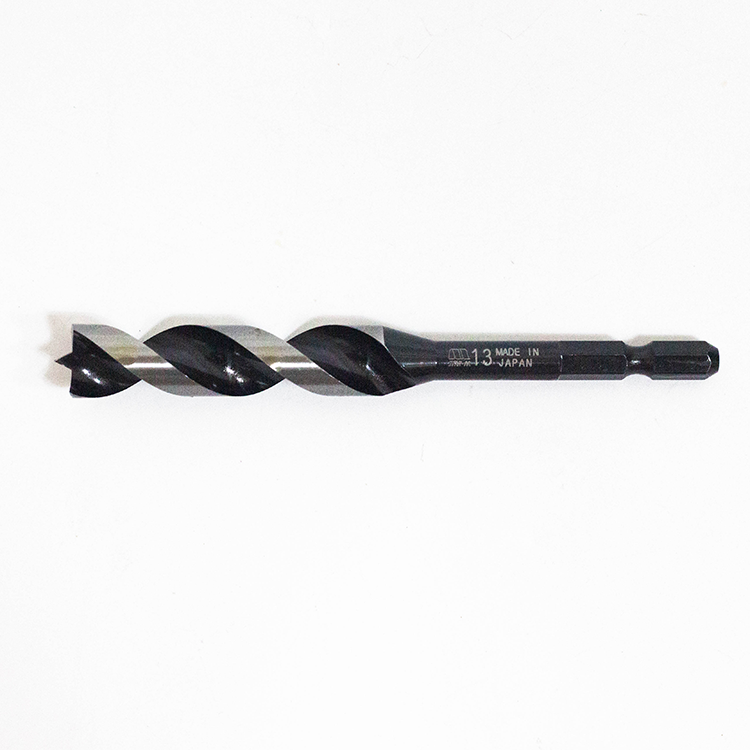

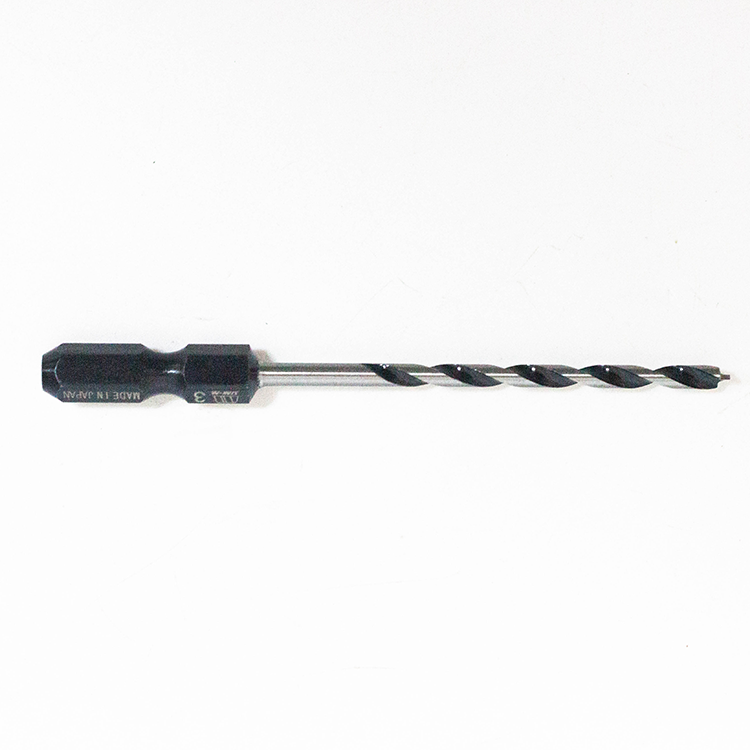

상세사진 | Pictures
