제품정보 | Model

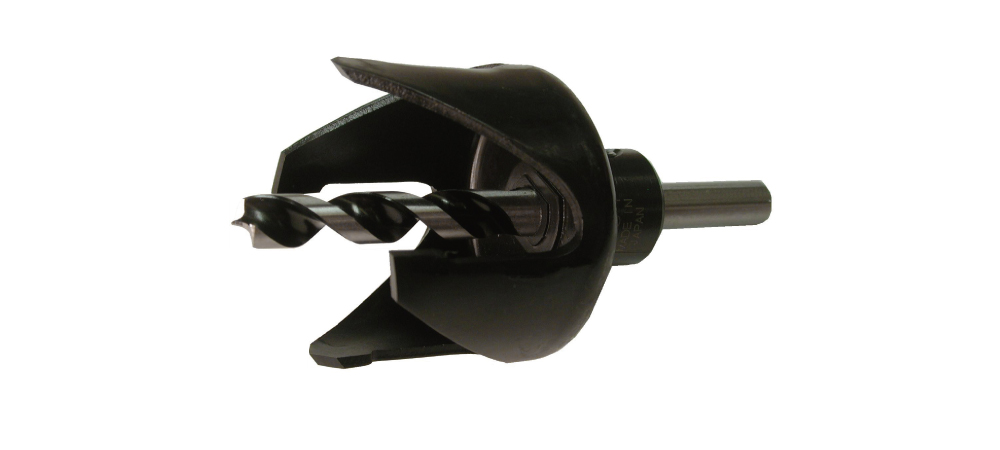

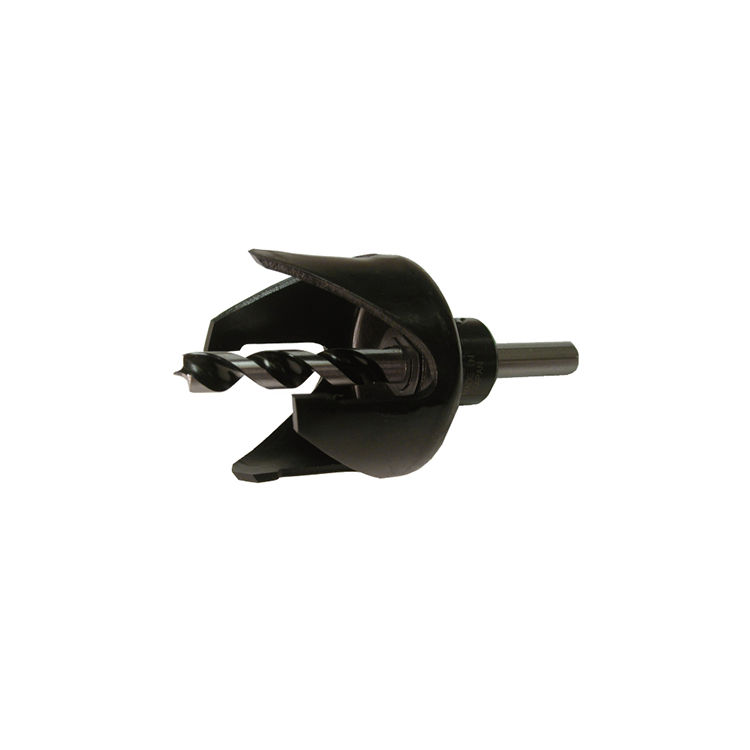

(스타엠 No.12 록 오거| Star-m No.12 Cup type Lock auger)
용도(Use)
- 문 손잡이 장착을 위한 드릴링
- Used exclusively for fixing door handle
특징(Features)
- 홀 쏘 타입이므로 드릴링 후의 나무 조각 제거가 간단합니다
- This is a special drill for installing exclusively for fixing door locks in entrance halls and in rooms
- T.C.T. Cup type has excellent sharpness and durability
- The hole saw type makes it easy to remove the wood chips after drilling
사양(Specification)
적용재(Usage) | 일반 목재 Wood |
| 재질(Materials) | 고탄소강 (High Carbon Steel) |
| 적용 기종 (Recommended tools) | 전기 드릴 Electric Power Drill |
| 적정 회전수 (Rpm Range) | 1,500회전/분 이하 (Less than 1,500rpm) |
| 축 마크를 보는 방법 (Shank Shape) | ：삼본홈(Three flats) |

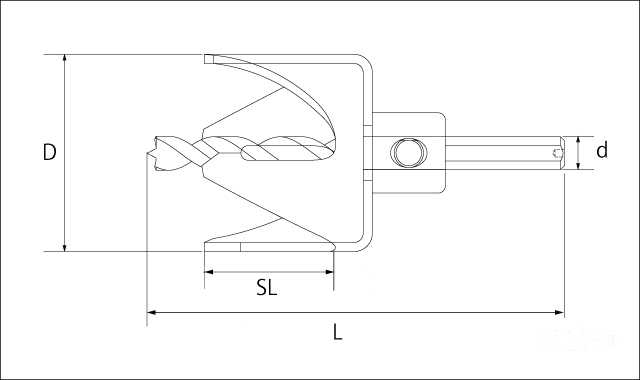

사이즈(Size
사이즈(Size):D
전장(Overall Length) : L
깊이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
| Product No. | Size | overall length | spiral length | Shank shape |
|---|---|---|---|---|
| s12 | 54 | 110 | 40 | 9 |
1박스: 1입
QTY(Inner Box: 1pcs

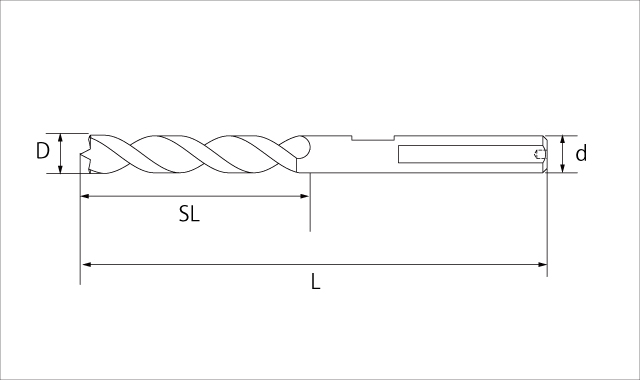

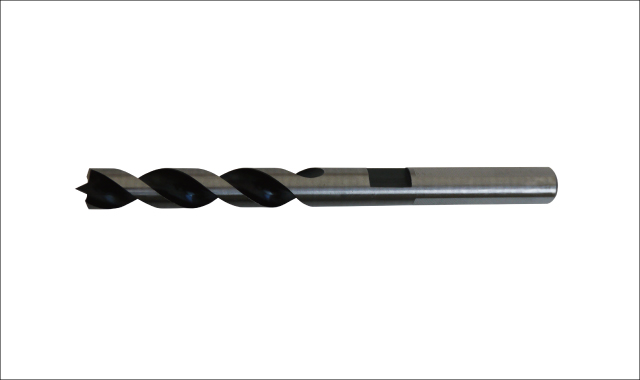

센터 드릴(Center drill)
사이즈(Size):D
전장(Overall Length) : L
깊이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| s12b | 9 | 110 | 55 | 9 |
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
