제품정보 | Model

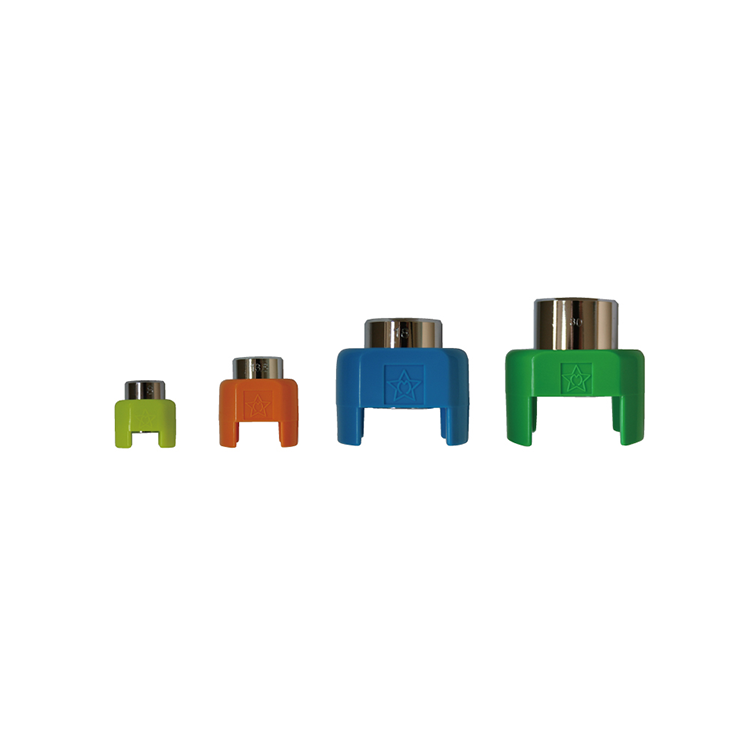

(스타엠 No.5005 드릴 스토퍼| Star-m No.5005 Drill Stopper)
용도(Use)
- 일정 깊이의 드릴링
- Drilling depth exactly adjustable
특징(Features)
- 멈추고 싶은 곳에서 딱 멈추기 때문에 일정 깊이의 드릴링이 가능합니다
- 수지제로 가공재에 상처가 나기 어려운 설계입니다
- 목공 드릴 이외에, 철공 드릴이나 콘크리트 드릴에도 설치가 가능합니다
- can be drilled consistently to the correct, pro-determined depth
= Designed for unique materials to avoid some damaged on the workpiece
- can be used with all kinds of drills for wood, steel and concrete
사양(Specification)

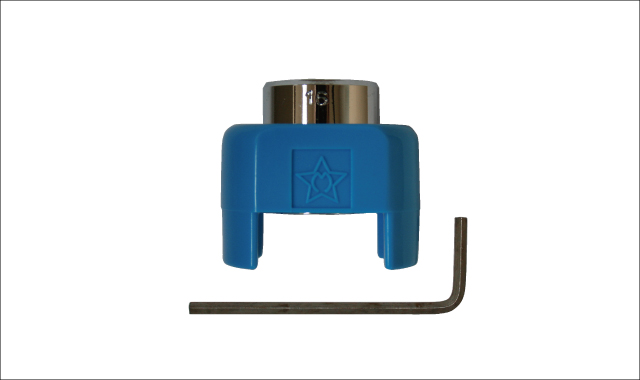

재질(Materials) | 본체: 수지 금속부: 보통강 Body: Duracon Metal part: High carbon steel |
| 주의사항(Caution) | 진동 드릴에서는 사용하지 마십시오 고정 나사는 홈 부분에서 단단히 조입십시오 피삭재에 접한 상태에서 공회전을 계속하면 수지가 녹을 가능성이 있으므로 주의해 주십시오 Do not use with hammer drills Please the set screw securely in the groove Please note that the duracon may melt if it is kept drilling while in contact with the workpiece |

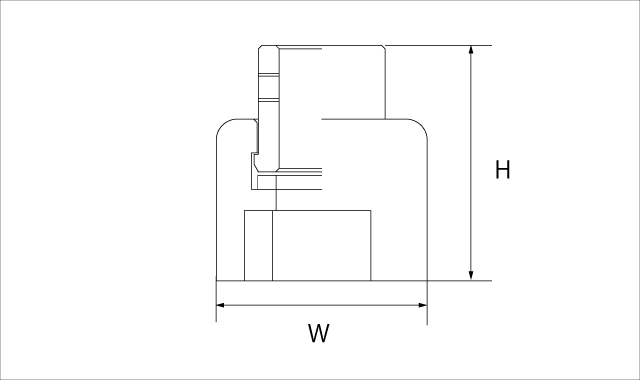

사이즈(Size


높이(Height) : H
폭(Width) : W
단위(Unit)(mm)
| Product No. | Size | Height | Width |
|---|---|---|---|
| S50053 | 3 | 25 | 22 |
| S50054 | 4 | ||
| S50055 | 5 | ||
| S50056 | 6 | ||
| S50058 | 8 | 28 | 26 |
| S50059 | 9 | ||
| S500510 | 10 | ||
| S5005105 | 10.5 | 31 | 30 |
| S500511 | 11 |
| S500512 | 12 | 31 | 30 |
| S500513 | 13 | 41 | 38 |
| S5005135 | 13.5 | ||
| S500515 | 15 | ||
| S500516 | 16 | 43 | 46 |
| S500518 | 18 | ||
| S500521 | 21 | 51 | 52 |
| S500524 | 24 | 54 | 57 |
| S500527 | 27 | 64 | 63 |
| S500530 | 30 | 68 | 68 |
1박스: 3입
QTY(Inner Box: 3pcs
사용하는 원뿔의 크기와 같은 크기의 드릴 스토퍼가 없는 경우에도 0.5mm 정도 큰 드릴 스토퍼라면 사용할 수 있습니다. 예를 들어 원뿔이 5.5mm인 경우, 드릴 스토퍼는 6mm를 사용해 주십시오
나사 타입의 경우, 고정 구멍을 뚫었을 때는 역회전으로 당깁니다만, 드릴 스토퍼를 사용하면 역회전시키지 않아도 쏙 빠집니다
Can be fitted with a Drill stopper of up to 0.5mm difference. Ex 5.5mm drill can be used with 6mm Drill Stopper
Designed for easy to come off a drill from workpiece used a screw point drill
부착 방법(How to fix a Drill stopper)

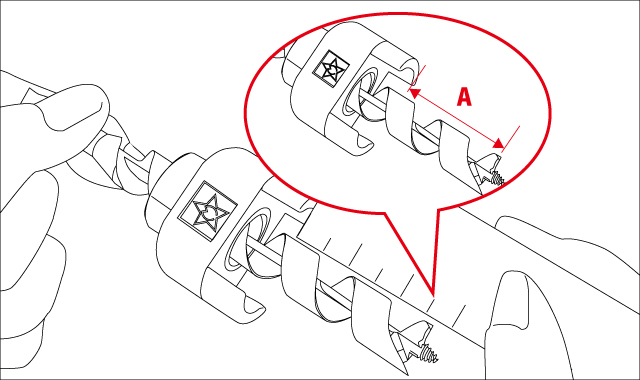

1자로 드릴 깊이 'A'를 결정합니다
Fix the depth 'A'

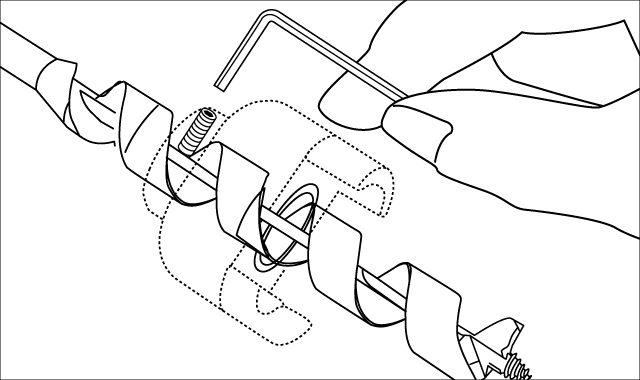

나선의 홈부분으로 단단히 나사를 조입니다
Tighten a screw on the flute at the required depth
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
