제품정보 | Model

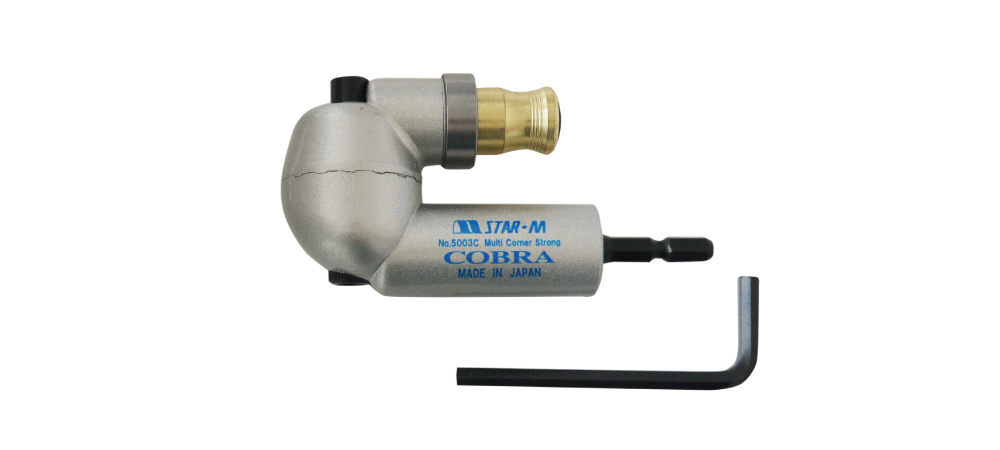

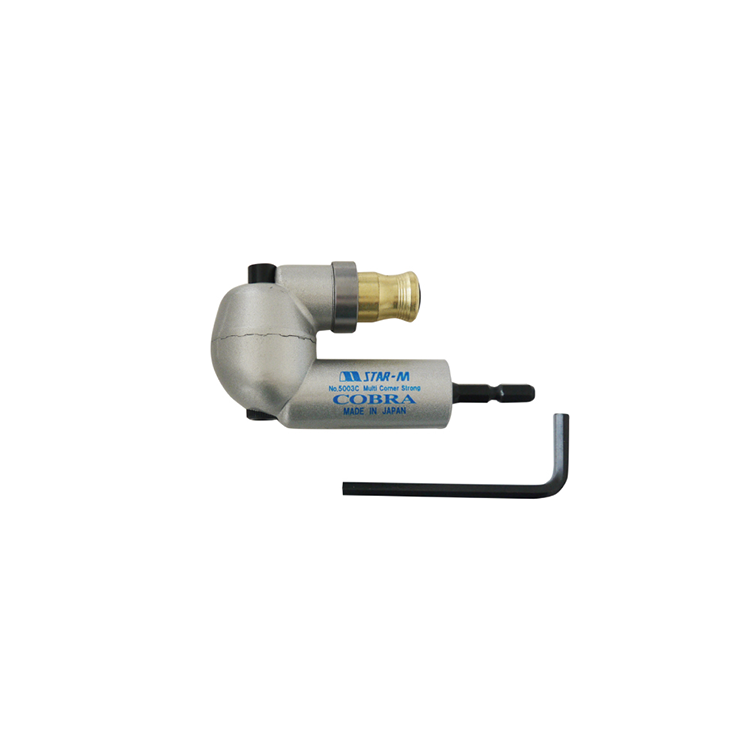

(스타엠 No.5003 코너스트롱 COBRA| Star-m No.5003 corner strong COBRA)
용도(Use)
- 좁은 곳이나 코너에서 나사를 조입니다
- Tighten the screw in a narrow place or corner
특징(Features)
- 코스 스레드 120mm 까지 타격이 가능합니다
- 드릴링은 임팩트 비트 미들 21mm까지 사용가능합니다
- 헤드 선회 각도를 조정할 수 있습니다
사양(Specification)
재질(Materials) | 본체: 알루미늄 다이캐스트 축부: 크롬 몰리브덴강 Body: Aluminium |
| 적용 기종(Recommended tool) | 임팩트 드라이버 14.4V 드릴 드라이버 14.4V 이상 전기 드릴 Impact Driver 14.4V Drill Driver over 14.4v Electric drill |
| 적정 회전 수(RPM) | 3,000 회전/분 이하 Less than 3,000RPM |
| 최대 토크 (Max torque) | 300kgf.cm(49.1Nm) |
| 축 마크를 보는 방법(Shank Shape) | : 육각축(Hexagon) |
사이즈(Size


전장(Overall Length) : L
헤드 길이(Head Length) : L2
축경(Shank) : d
단위(Unit)(mm)
| Product No. | Overall Length | Head Length | Shank |
|---|---|---|---|
| S5003C | 143 | 58 | 6.35 |
1박스: 6입
QTY(Inner Box: 6pcs
각도 조절 방법

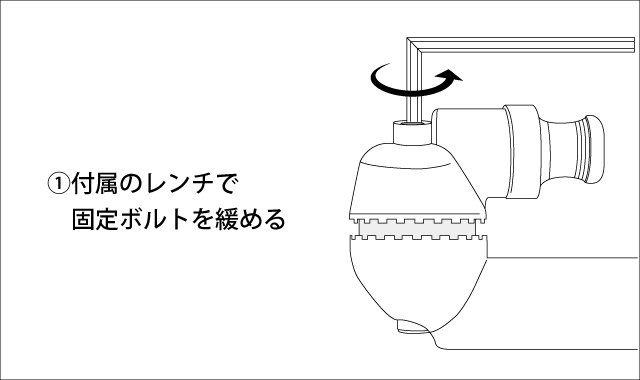

부속된 렌치로 고정 볼트를 풀어줍니다
Loosen the fixing bolts with the included wrench

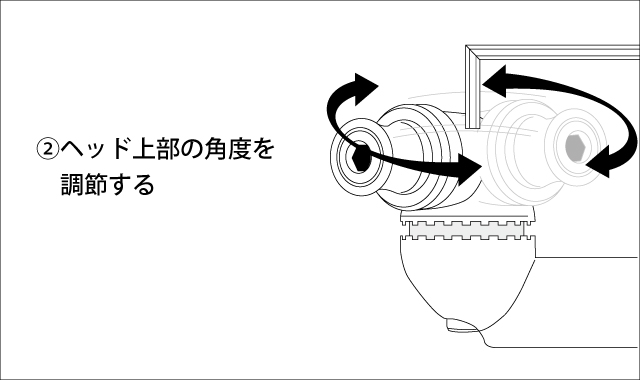

헤드 상부의 각도를 조절합니다
Adjust the angle on the top of the head

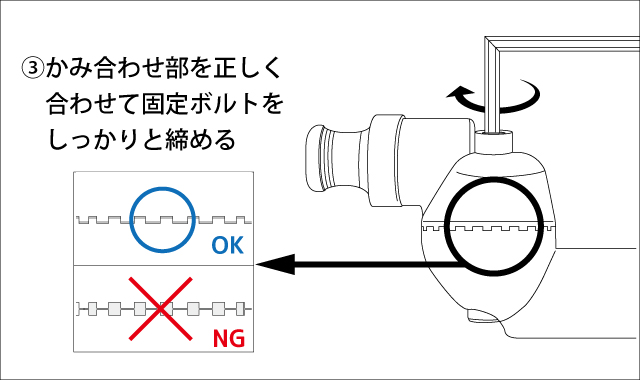

맞물림부를 어긋나지 않도록 올바르게 맞추어 고정볼트를 단단히 조입니다
Tighten the fixing bolts to ensure that the engagement is not misaligned
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
