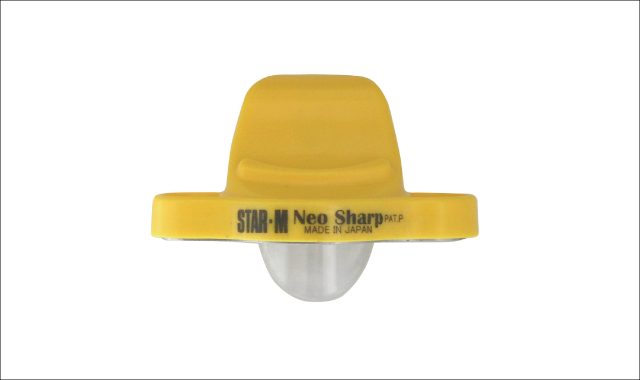

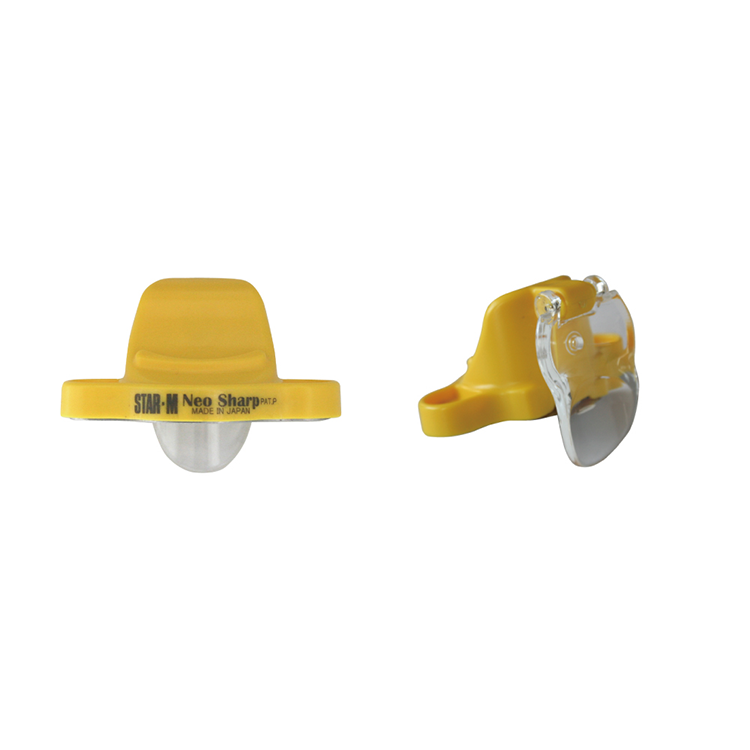

제품정보 | Model
(스타엠 No.4970 네오샤프| Star-m No.4970 neo sharp)
용도(Use)
- 우드 베니어 테이프의 돌출 부분을 제거
- Cutting off for wood veneer edge banding tape
특징(Features)
- 직선, 곡선의 컷 가능
- 원형 블레이드는 360도 사용 가능
- Straight and curved lines can be used
- Circular replaceable blade
사양(Specification)
적용재(Usage) | 우드 베니어 테이프 Wood veneer edge banding tape |
| 재질(Materials) | 본체: ABS 수지 블레이드: 스테인레스 클립: 아크릴 판금 플레이트: 스테인레스 Body: ABS Blade: High carbon steel Clip: Acrylic Sheet metal plate: stainless |
| 주의사항(Caution) | 슬라이드를 시킬 때에는 판금 플레이트를 모재에 단단히 맞춘 상태로 슬라이드를 시켜 주십시오. 대각선이나 떠있는 상태에서 사용하면 상처가 생길 우려가 있으므로 주의하시기 바랍니다 When sliding, slide the sheet metal plate firmly along the base material Please note that it may be scratched if used at an angle or in a floating state |

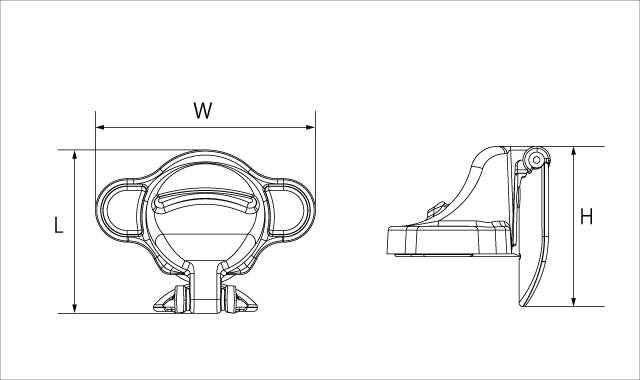

사이즈(Size


전장(Overall Length) : L
높이(Height) : H
넓이(Width) : W
단위(Unit)(mm)
| Product No. | Overall Length | Width | Height |
|---|---|---|---|
| S4970 | 42 | 56 | 41 |
1박스: 6입
QTY(Inner Box: 6pcs

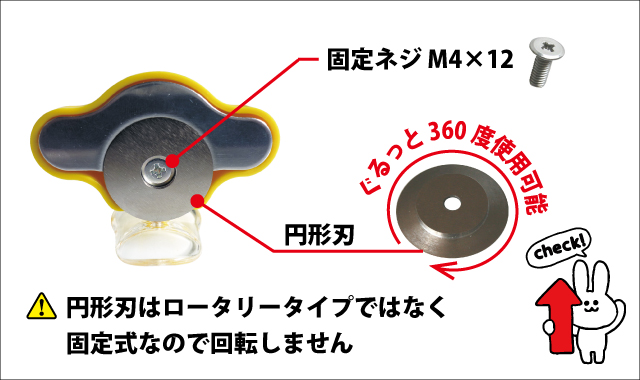

- 원형 블레이드는 360도 사용할 수 있습니다 고정 나사를 풀고 날을 조금 회전시켜 미사용 부분에 맞추고 고정 나사를 다시 조입니다
- The Circular blade can be used 360 degree. Loosen the fixing screw and rotate the blade a little to fit the unused part and retighten the fixing screw

사용 방법(How to use)
돌출된 돌판 테이프를 클립과 칼날(원형 칼날) 으로 단단히 끼워 모재 위를 밀어 넣습니다
Firmly pinch the protruding veneer tape between the clip and the blade (circular blade), and slide it over the base metal

커브 커팅
Cut the curve

직선 자르기
Cut a straight line
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
영상 | Movie
