제품정보 | Model
(스타엠 No.5050 뭉게진 나사,못 제거 비트| Star-m No.5050 screw extractor bit)
용도(Use)
- 머리가 뭉개진 나사를 뽑습니다
- Ideal for removing damaged screws
특징(Features)
- 나사를 빼낸 구멍은 손상이 적기 때문에 다시 같은 부분에 나사를 칠 수 있습니다
- 나사를 빼내는 전용 비트는 양측 모두 사용 가능합니다
- Can be removed the damaged screw
- Dedicated bit for removing screws can be used on both sides
- No damaged to the surrounding work pieces and allows to re-screw at the same place
사양(Specification)
적용재(Usage) | 열처리를 하지 않은 나사 스테인리스 나사 Non-hardened screws Stainless steel screws |
| 재질(Materials) | 하공 드릴: (내추) 코발트 하이스강 + (육각축) 합금 공구강 전용 비트: 합금 공구강 스페어 드릴: 코발트 하이스강 Tapered Bit(Countersink bit): Range of SKH Series, (Hexshank) Alloy Tool steel Double-ended Bit: Allow Tool Steel Spare Bit: Range of SKH Series |
| 적용 기종(Recommended tools) | 임팩트 드라이버 14.4V 이상 드릴 드라이버 14.4V 이상 Quick Change Impact Driver (over14.4v) Cordless Drill(over14.4v) |
| 적정 회전수(RPM) | 3,000회전/분 이하 Less than 3,000rpm |
| 축 마크를 보는 방법(Shank shape) | :육각축(Hexagon) :원축(Round) |
| 주의사항(Caution) | 나사 직경에 대응하는 사이즈를 사용해 주십시오 과도한 하중이나 마모로 인해 칼날이 파손될 수 있으므로 자주 새 스페어 드릴로 교체하십시오 태핑 나사 코스 스레드에는 사용하지 마십시오 Be carefully to use the proper screw sizes Please replace the spare drill frequently to prevent damage by over-load or wear Do not use for tapping screws or coarse threads |

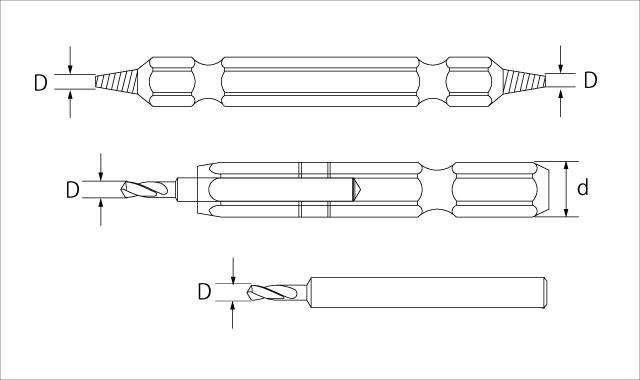

사이즈(Size


사이즈(Size) : D
축경(Shank) : d
단위(Unit)(mm)
| Product No. | Name | Size | Shank | Recommended screw sizes |
|---|---|---|---|---|
| S505015 | 1.5mm 세트 | 1.5 | 6.35 | M2.5~3 |
| S505020 | 2.0mm 세트 | 2.0 | M4~5 |
1박스: 6입
QTY(Inner Box: 6pcs

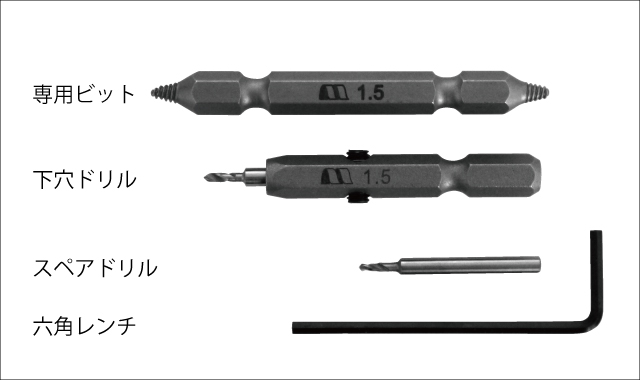

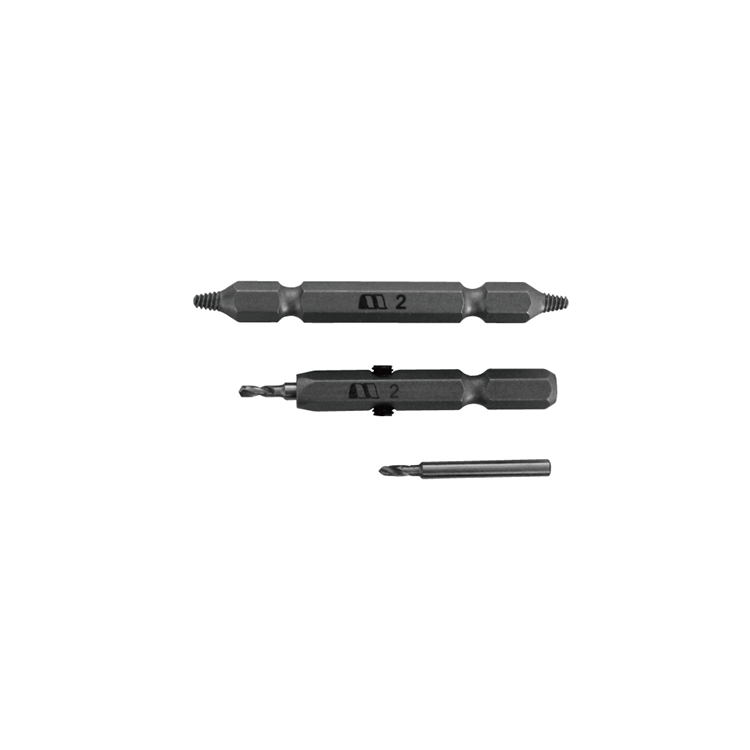

세트 구성: 하구멍 드릴, 전용비트, 스페어 드릴, 육각렌치
Set contents: Double-ended Bit, Tapered Bit, Spare Bit, Hex Wrench

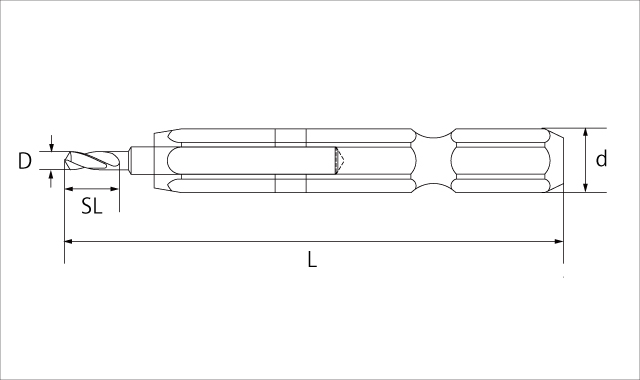

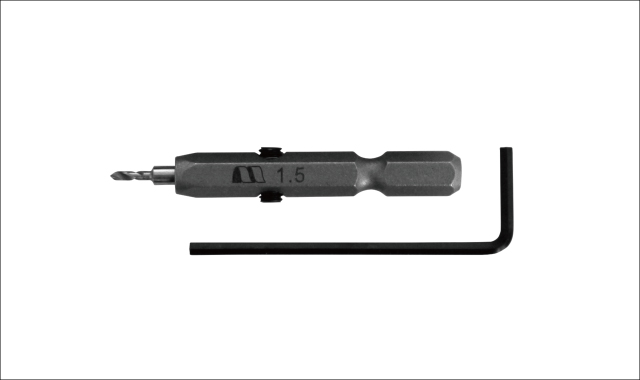

하공 드릴 (Tapered Bit)


사이즈(size): D
전장(Overall Length): L
나사 길이(Spiral Length): SL
축경(Shank): d
단위(Unit):mm
| Size | Overall Length | Spiral Length | Shank |
|---|---|---|---|
| 1.5 | 55 | 5 | 6.35 |
| 2.0 |

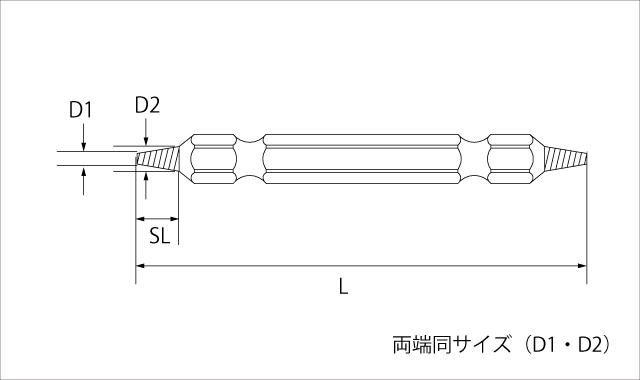

전용 비트 (Double-ended Bit)


사이즈1(Size1): D1
사이즈2(Size2): D2
전장(Overall Length): L
나사 길이(Spiral Length): SL
단위(Unit): mm
| Size1 | Size2 | Overall Length | Spiral Length |
|---|---|---|---|
| 1.5 | 3.5 | 65 | 5 |
| 2.0 |

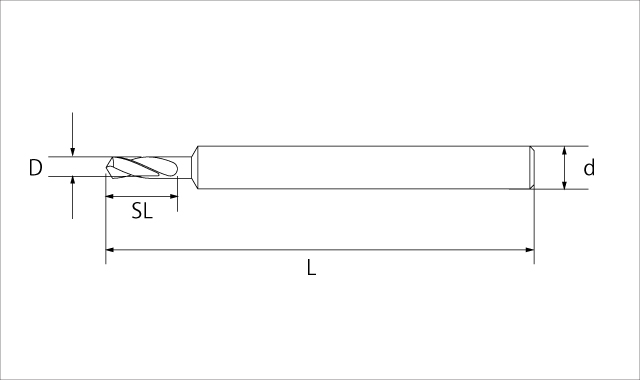

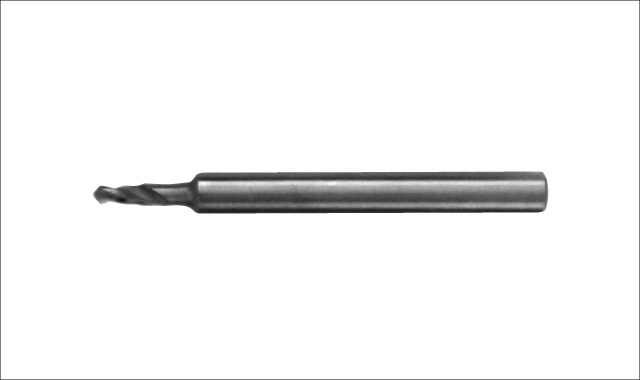

스페어 드릴 (Spare Bit)


사이즈(Size): D
전장(Overall Length): L
나사 길이(Spiral Length): SL
축경(Shank): d
단위(Unit): mm
| Size | Overall Length | Spiral Length | Shank |
|---|---|---|---|
| 1.5 | 30 | 5 | 3 |
| 2.0 |
사용 방법(How to Use)

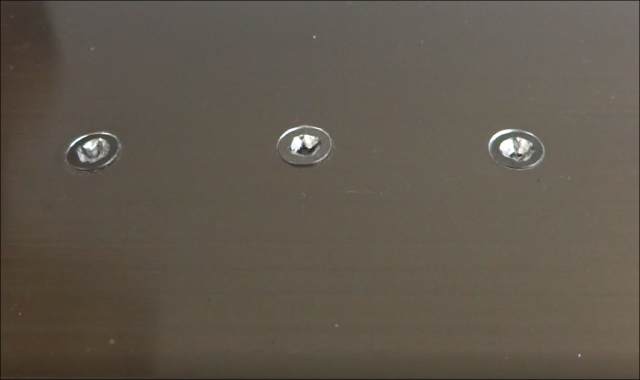

나사 머리가 부러진 나사
Damaged a screw head

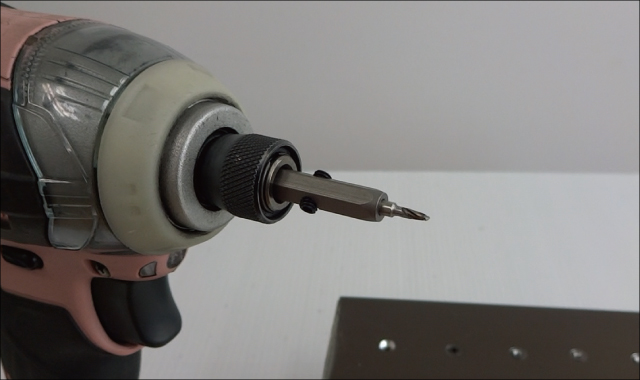

임팩트 드라이버에 하구멍 드릴 을 셋팅합니다. 사이즈는 나사 직경에 대응한 사이즈를 사용해 주십시오
Secure a Tapered Bit with a quick change impact driver. Be carefully to use a proper sizr of screw head

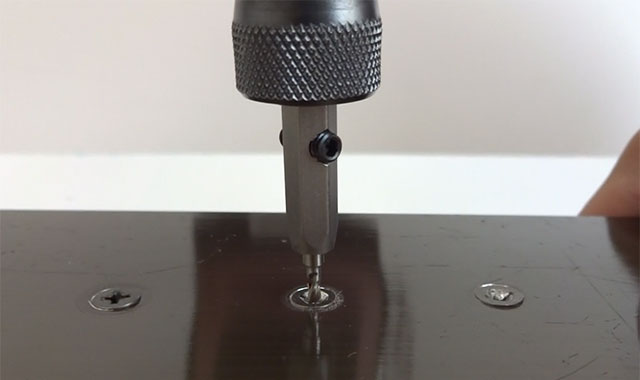

하구멍 드릴로 부서진 나사 머리에 똑바로 깊에 구멍을 뚫습니다
Drill a deep hole in the center of the damaged screw * Do not drill unnecessary as it may break or snap

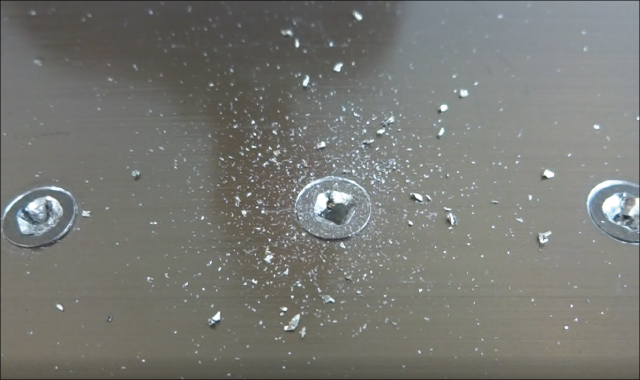

부서진 나사 머리에 구멍이 뚫렸습니다
Drilled a hole

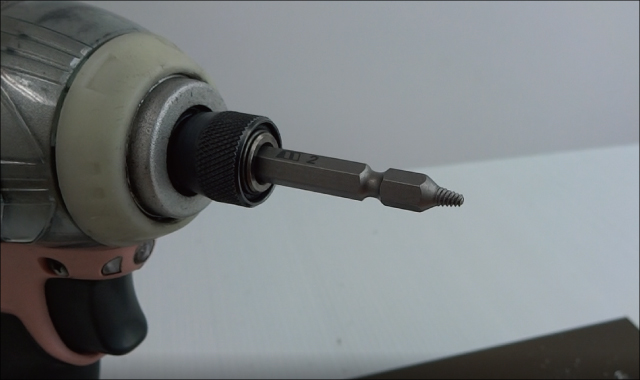

임팩트 드라이버에 전용 비트를 셋팅합니다
Secure a Double-ended Bit with a Quick change Imact Driver

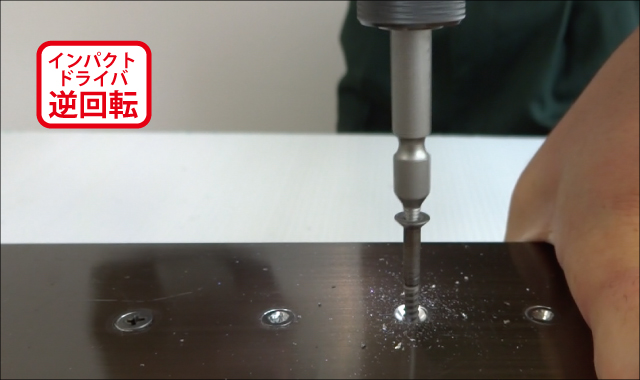

전용 비트의 나사부를 하공 드릴로 뚫은 구멍 안에 넣고 임팩트 드라이버를 역회전으로 돌립니다
Remove the screw with the Double-ended Bit and rotate it in reverse

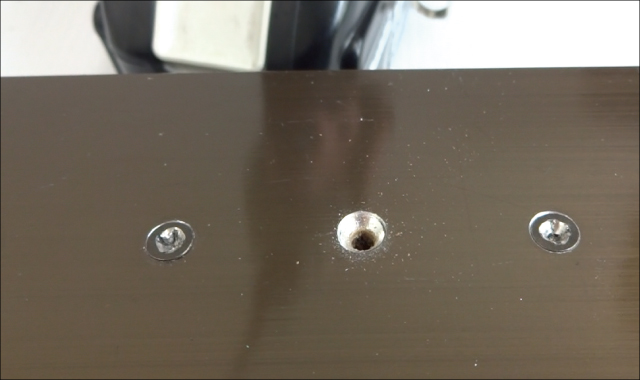

나사가 빠졌습니다
Removed the damaged screw

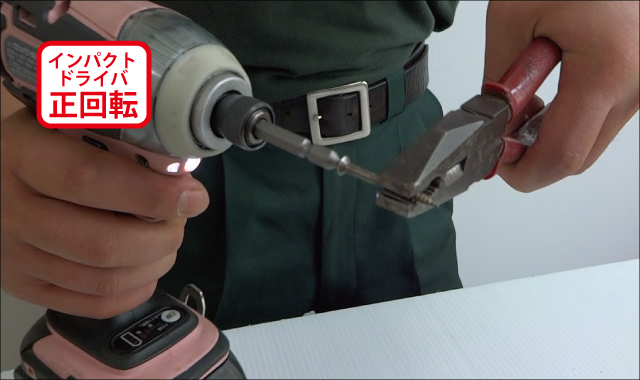

전용 비트에서 빼낸 나사를 제거합니다. 뺀찌 등으로 나사를 단단히 잡고 임팩트 드라이버를 정회전으로 돌립니다
Remove the screw out from the Double-ended Bit. Grip the screw securely with a pliers and rotate it in regular with a quick change impact driver

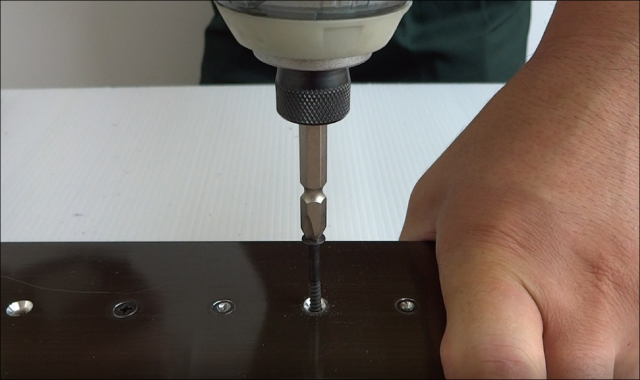

같은 부분에 다시 나사를 치십시오
Re-screw at the same place

나사 조임 완성
completed
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
