제품정보 | Model

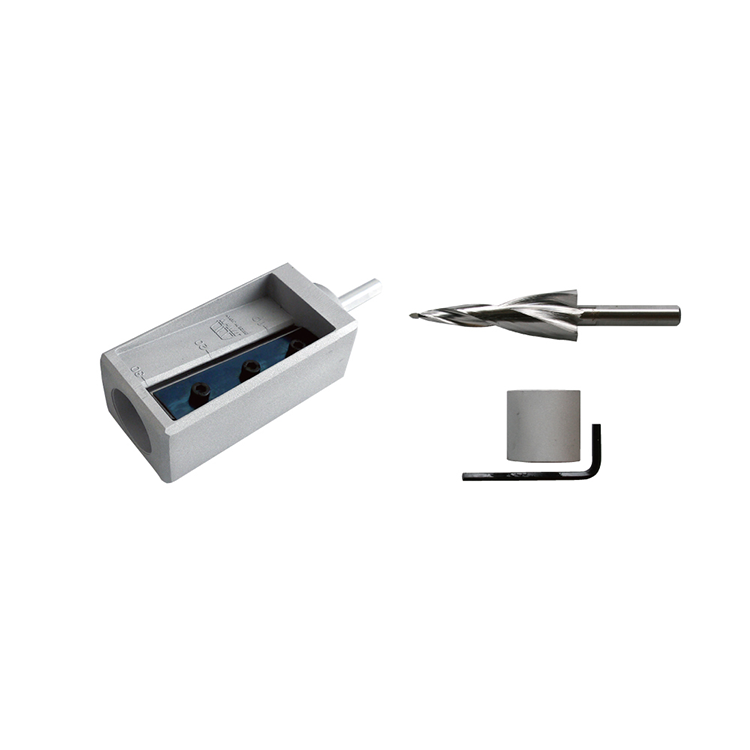

(스타엠 No.4950 옹이제거기리 세트| Star-m No.4950 Knot Remover)
용도(Use)
- 옹이제거
- A set capable of easily regenerating dead knots and missing knots
특징(Features)
- 나뭇가지나 둥근 나무 장대로 나무 마개를 만들 수 있습니다.
- Shape with a taper bit. After that drive wooden plug to regenerate the knot
- You can make a wooden plug from twig or round wooden pole
사양(Specification)
적용재(Usage) | 일반 목재 Wood |
| 재질(Materials) | 프러그 커터: 알루미늄 프러그 커터 축: 고탄소강 날: 하이스강 테이퍼 드릴: 특수강 게이지 링: 알루미늄 Plug Cutter: Alminium Plug Cutter Shank: High Carbon Steel Replaceable Blade: H.S.S. Taper Drill: Special Steel Gauge Ring: Aluminium |
| 적용 기종(Recommended Tools) | 전기 드릴 드릴 드라이버 14.4V이상 Electric Power Drill |
| 적정 회전수(RPM) | 1,500회전/분 이하 Less than 1,500RPM |
| 축 마크를 보는 방법(Shank Shape) | :삼본홈(Three flat) |
사이즈(Size


| Product No. | Shank Shape |
|---|---|
| S4950 | 10![]() |

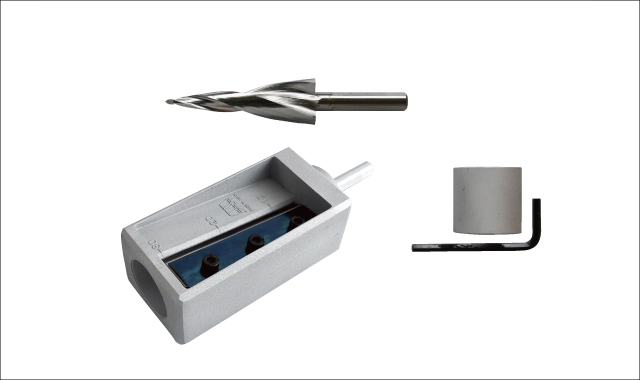

구성 목록(Assembly)

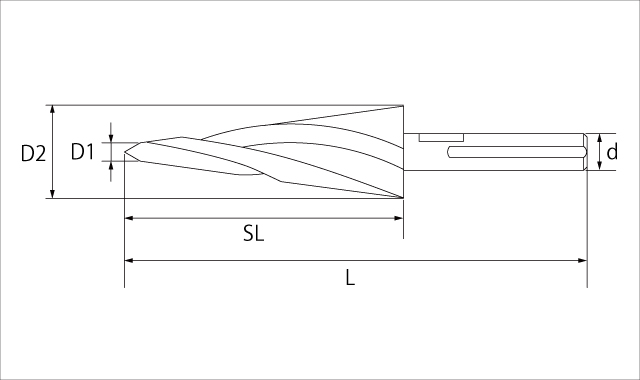

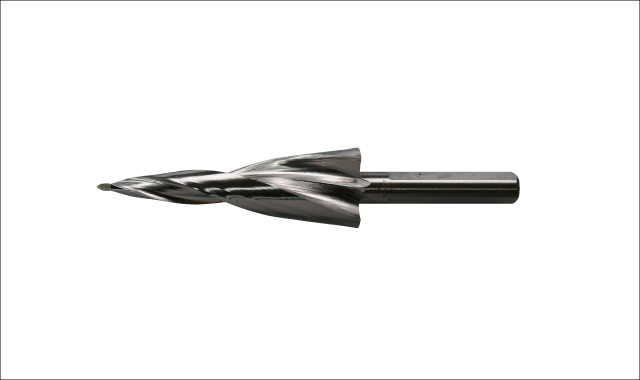

테이퍼 드릴(Taper Drill)


사이즈1 (Size1) : D1
사이즈2 (Size2) : S2
전장 (Overall Length) : L
나사길이 (Spiral Length): SL
축경 (Shank): d
단위(Unit)(mm)
| Size 1 | Size 2 | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 5 | 25 | 126 | 76 | 10 |

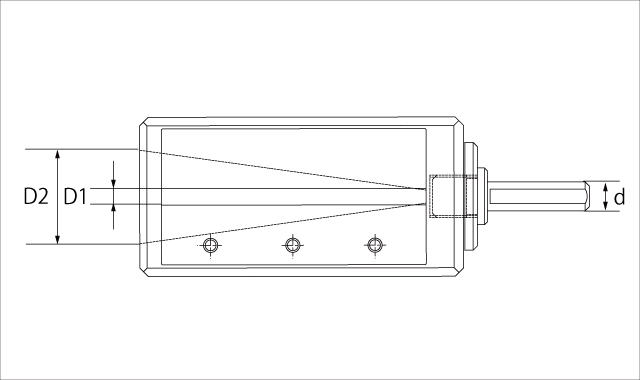

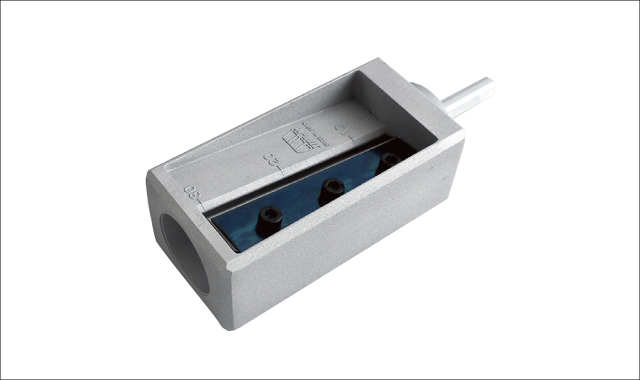

프러그 커터(Plug Cutter)


| Size 1 | Size 2 | Shank Shape |
|---|---|---|
| 5 | 30 | 10 |

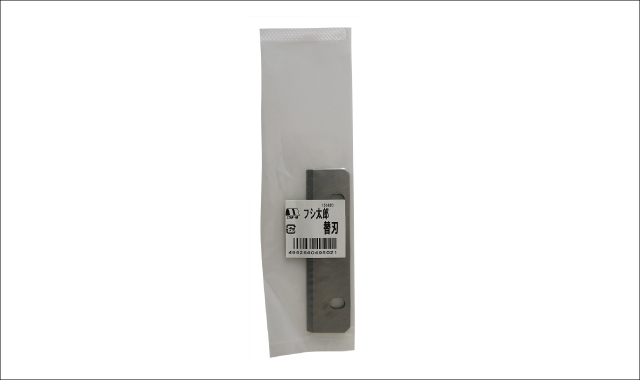

- 교환날, 축, 전환날 고정나사가 세트로 포함되어 있습니다
- Replaceable Blade, Plug Cutter shank

교환 날 고정나사는 세트로 포함되어 있지 않습니다
The set screws are not included

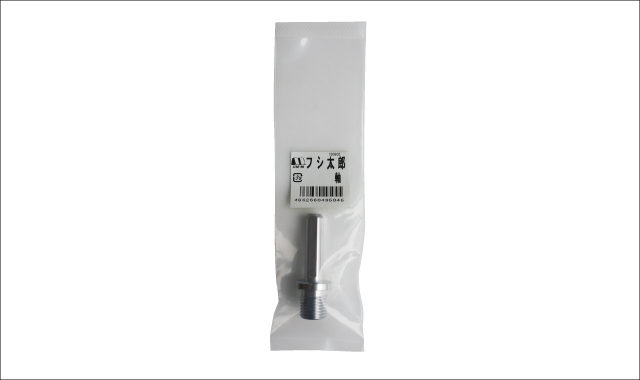

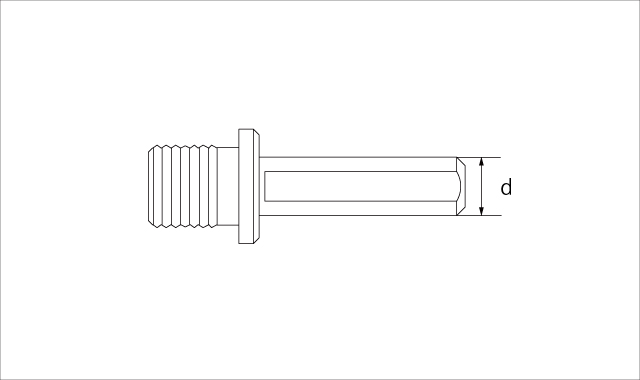

프러그 커터 축 (Plug Cutter Shank)


축(Shank Shape): 10

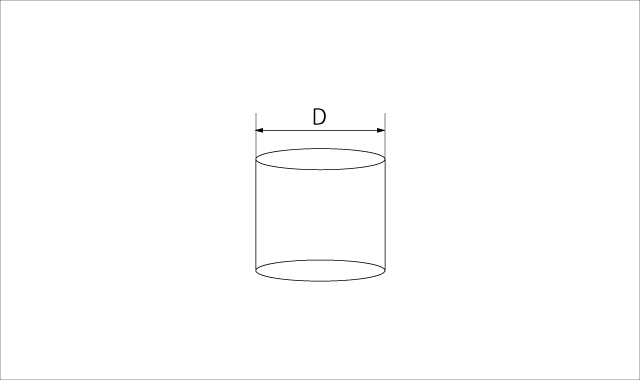

게이지 링(Gauge Ring)


내경(Inner Size): 30
기타(Other Assembly)


| Name | Size |
|---|---|

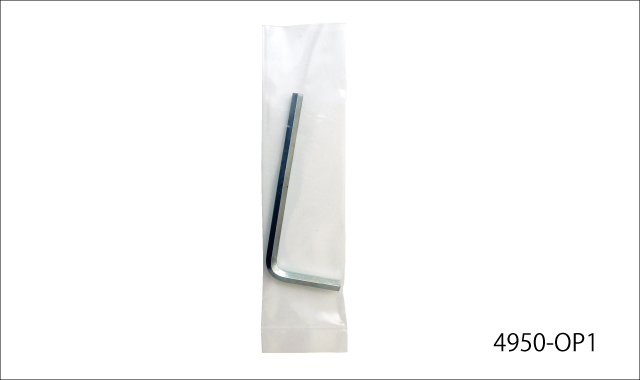

| 육각 렌치 (Hex Wrench) | 4 |

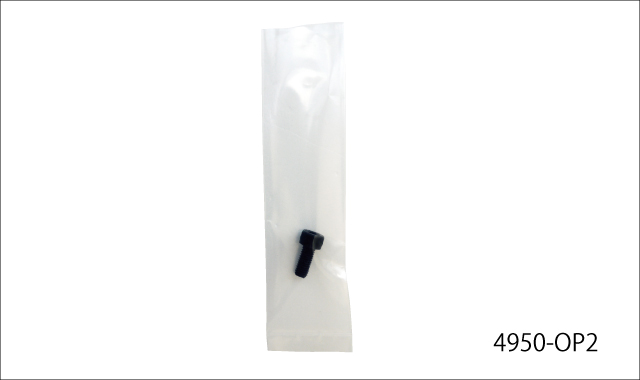

| 교체 날 고정 나사 (Set screw for fixing replaceable Blade) | 5X12 |
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
사용법 | How to use

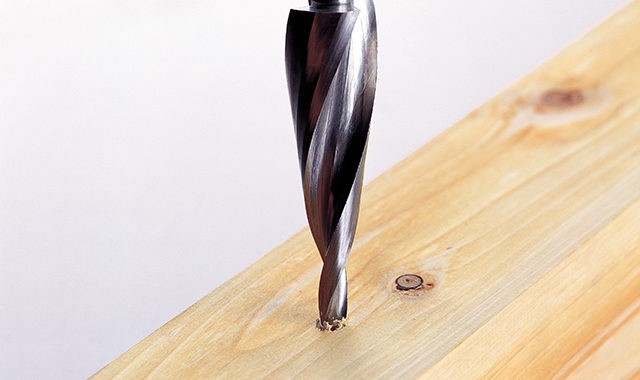

테이퍼 드릴로 옹이의 직경에 맞추어 깎습니다
Shave with a taper drill along the diameter of knot

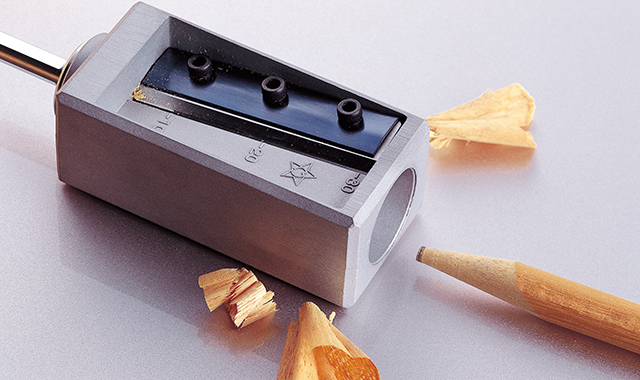

옹이 구멍보다 조금 더 두꺼운 가지를 목마개로 깎습니다
Shape with a wood plug under a branch a little thicker than the hole of the knot

뚫린 구멍에 접착제를 도포한 목마개를 박고, 튀어나온 부분을 잘라냄으로 마무리 하시면 됩니다
Drive a wooden plug coated with a bond agent into the hole made in the knot with taper drill.
Cut off the projecting part of the wooden plug, finish th e cut off part by sanding and it will turn into a beautiful live knot instantly
영상 | Movie
