제품정보 | Model

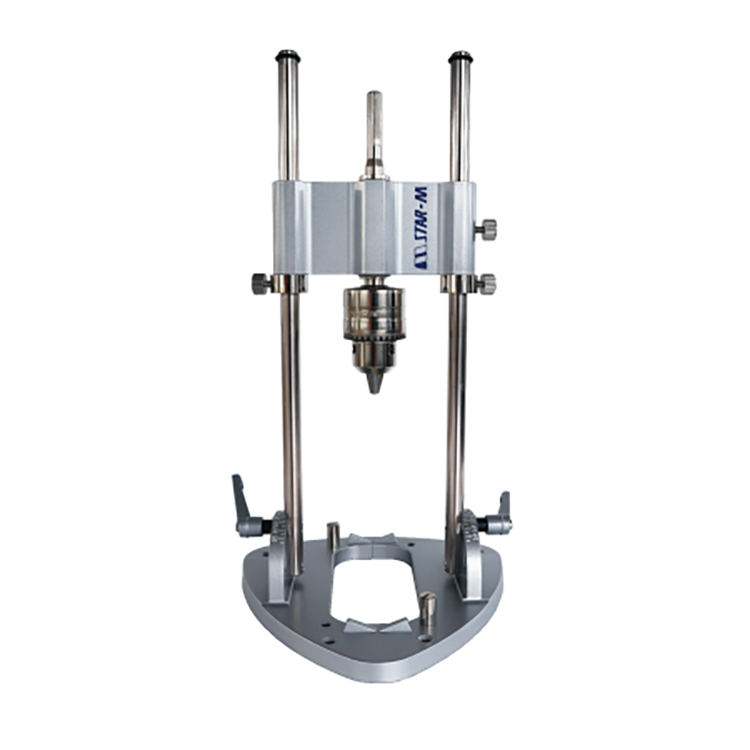

(스타엠 No.50R 드릴스텐드 룰로| Star-m No.50R Drill stand Rulo)
용도(Use)
- 수직, 센터 드릴링 작업
- Multi-purpose drill accessory
특징(Features)
- 드릴 스탠드보다 내구성, 안정성, 드릴링 정확도가 우수합니다
- 새련된 디자인과 작업시의 정렬의 범용성이 높아졌습니다
- 탁상 볼반은 움직일 수 없습니다만, 본 제품은 운반을 할 수 있으므로 사용하기 수월합니다
- The base comes in a special shape, offers great standing stability and positioning
- Tabletop drilling can be useful at a lack of space and a need for portability
- Built in protractor-Drills accurate right-angled or variable-angled holes with the built-in protractor scale
- Stylish design- adopt reuleaux triangle asan easy to use
- Adjustable- adjusts from 0 to 45 degrees in 5-degree increments in either direction of vertical drill position
- Positive stop- Built-in depth stop for accurate drill depth
사양(Specification)
재질(Materials) | 본체: 알루미늄 Body: Aluminium |
적용 기종(recommended tools) | 드릴 드라이버 14.4v 이상 전기 드릴 Cordless drill (over14.4v) electric power drill |
| 장 착 가능한 팁 공구 크기(Technical data) | 사이즈: 57mm 이하 전장: 220mm 이하 축경: 1.5~13mm 까지 Max Diameter: 57mm Max Overall Length: 220mm Shank Shape: 1.5mm up to 13mm |
| 적정 회전수(RPM Range) | 2,500회전/분 이하 Less than 2,500 rpm |
| 축 마크를 보는 방법(Shank Shape) | :Three Flats(삼본홈) |
| 주의사항(Caution) | 사용 전에 드릴 척부 및 레버는 확실하게 조여서 사용해 주십시오 작업하는 동안 보호 장비를 착용하십시오 드릴 스탠드 RULO의 베이스는 클램프 또는 손으로 단단히 고정하십시오 각도를 붙인 상태에서는 본체가 넘어질 우려가 있으므로 주의해 주십시오 척키 홀더는 척 핸들의 보관에 이용하시는 것입니다. 드릴 작업시에는 척키 홀더를 분리하고 O링을 설정하여 사용하십시오 Tighen the drill chuck and lever securely before operation Wear personal protective equipment when using The bas of the Drill stand RULO should be secured firmly by clmap or by hand Please note that the main body may fall over when angled The chuck key can be stored by the keyholder. When using, remove the chuck keyholder and fix the O-ring securely |
사이즈(Size


높이(Height): H
가이드 바폭(Width of slide bar): a
베이스 내경(Inner dia of base): b
축경(Shank shape): d
단위(Unit)(mm)
| Product No. | Width of slide bar | Inner dia of base | shank shape |
|---|---|---|---|
| S50R | 367.5 | 99 | 10 |
1박스: 1입
QTY(Inner box): 1pcs
수직 사용시 최대 스트로크는 220mm
경사 각도 45도로 사용하는 경우, 설치 가능한 피라미드의 직경은 22mm까지(쇼트 비트, 겸용 비트)가 됩니다
드릴 스탠드 RULO는 편리한 기능을 갖추고 있습니다
Maximum stroke 220mm for a straight hole
Maximum diameter 22mm for a 45° angled pocjet hole (Combination short auger bit and Combination auger bit)
편리한 점 (Advantage Points)

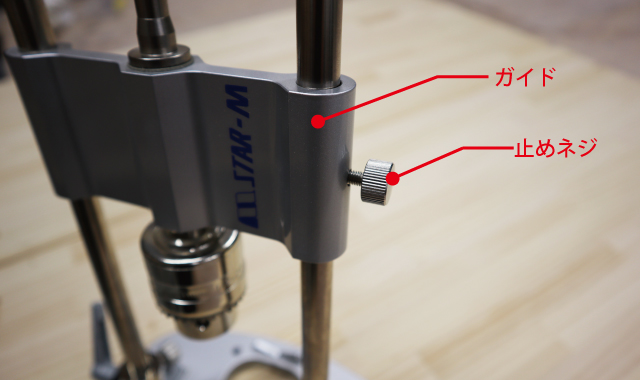

가이드 부분에는 고정 나사가 붙어 있습니다. 드릴을 설치할 때 가이드가 임시 고정이 가능하므로 셋팅하기가 쉬워집니다
The supplied set screw is usefil for temporary fixing when set up drills

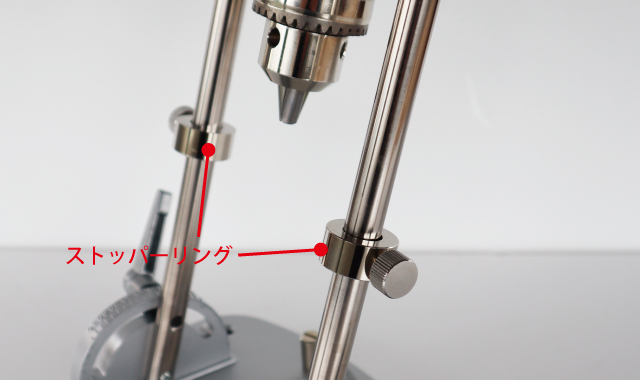

일정 깊이의 드릴링(Drilling at a fixed depth)

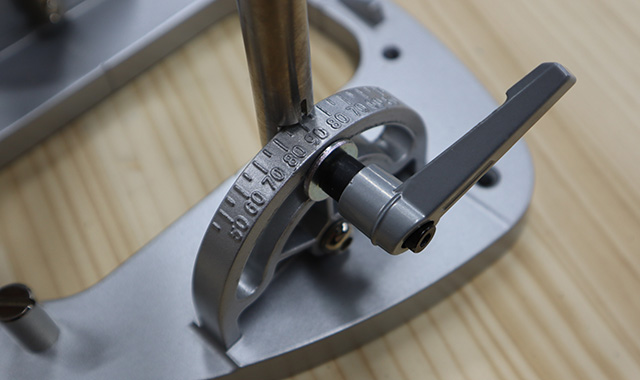

레버식 핸들로 각도 조절이 간단. 눈금도 요철이 붙어 알기 쉽습니다

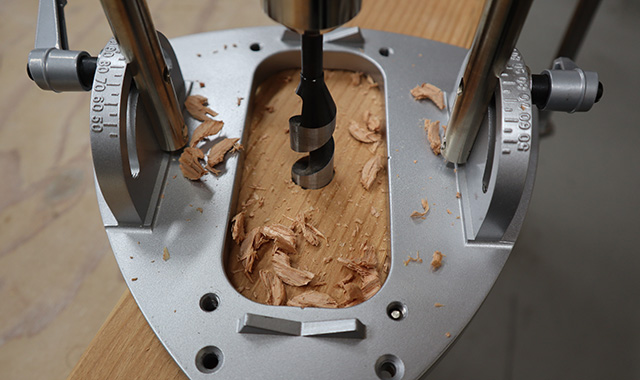

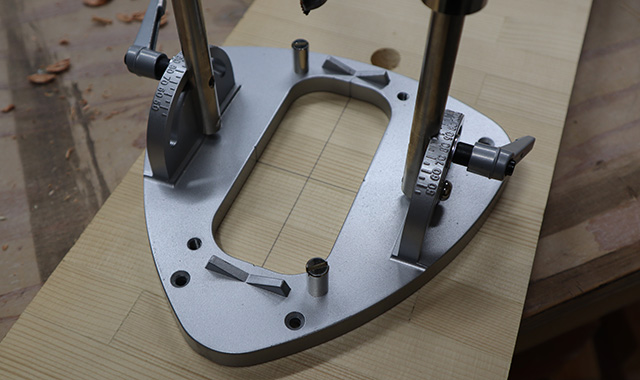

부드러운 센터내기(Smoother centered hole)

베이스에 게이지가 붙어 있으므로, 센터 내기가 부드럽게 가능합니다
The gauge on the base allows to make centered holes smoothly

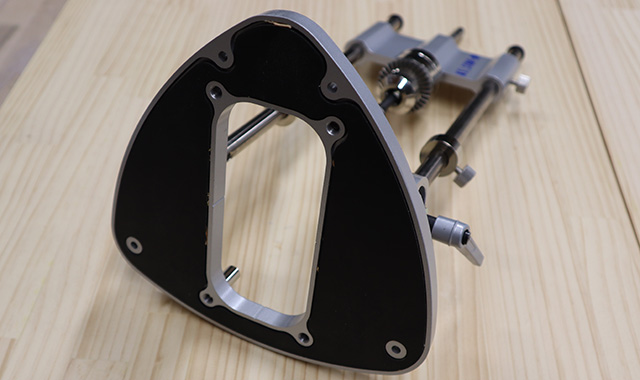

미끄러짐 방지(Not Slippery)

베이스 바닥에는 고무시트가 붙어 있기 때문에 잘 미끄러지지 않습니다
The bottom of the base has a rubber sheet to prevent slipping

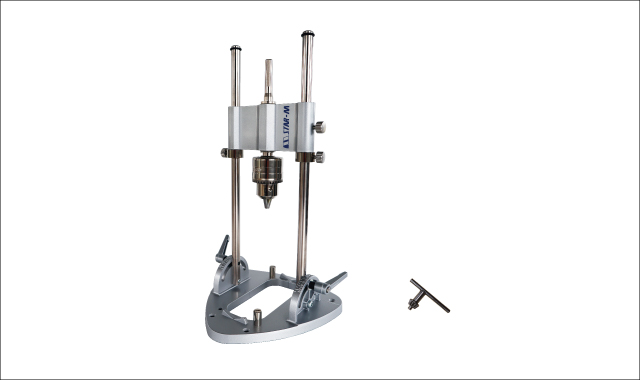

척 핸들 수납(Stored chuck key)

보관시에 부속의 척키 홀더에 척 핸들을 꽂아 두면, 분실할 염려가 없습니다
The chuck key can be inserted into the chuck keyholder

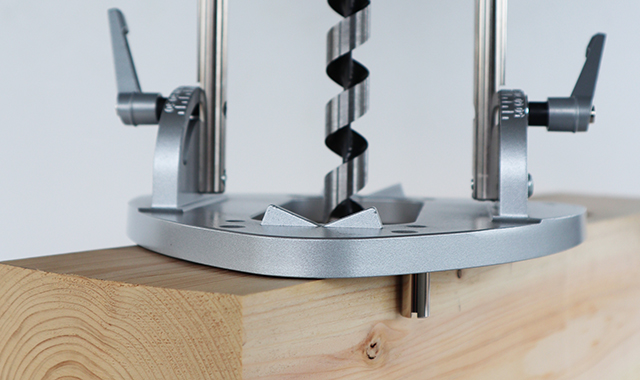

록 핀을 베이스 바닥 부분에 대각으로 설치하면 각재의 센터 배출이 간단합니다
Lock pins to hold the guide sequirely in place on flat surfaces in square timber
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
사용 예 | How to use

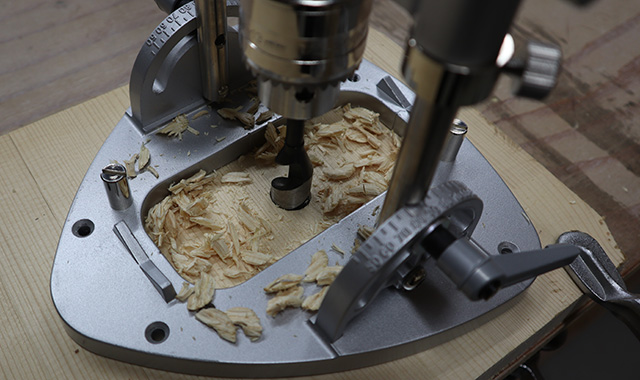

90도 수직 구멍 가공
straight holes

V홈을 이용한 둥근봉 가공
round bar processing with V groove

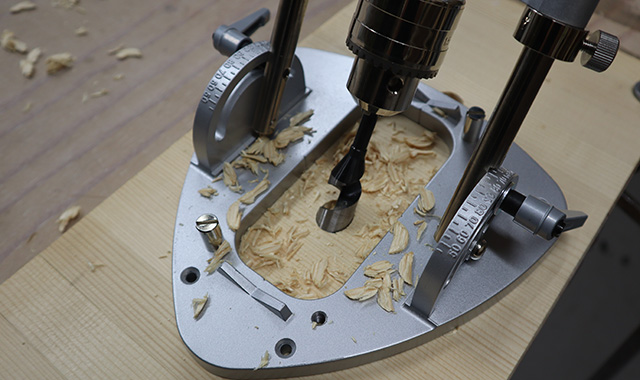

대각 구멍 가공
angled pocket holes

각재에의 센터 홀 가공
centered holes in squared timber
영상(Movie)
