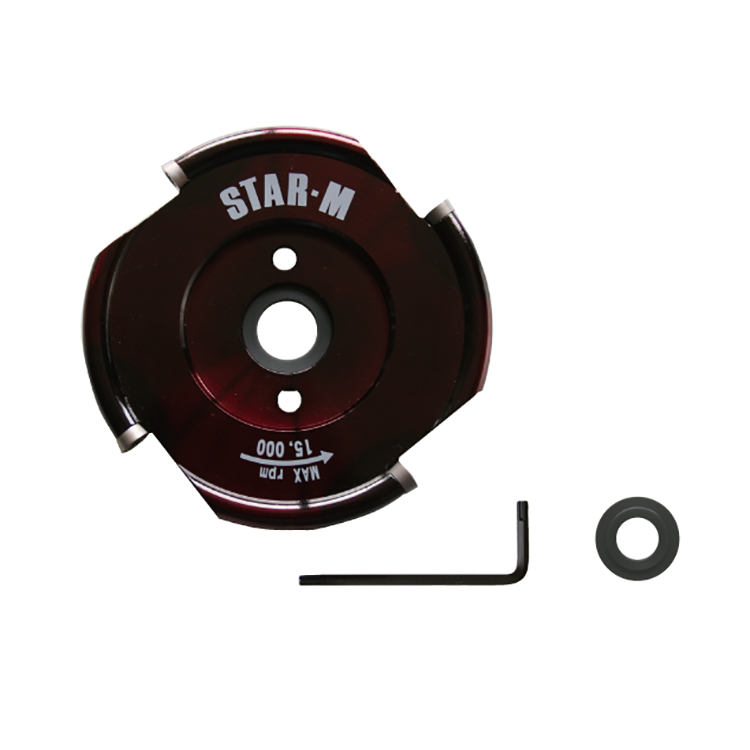

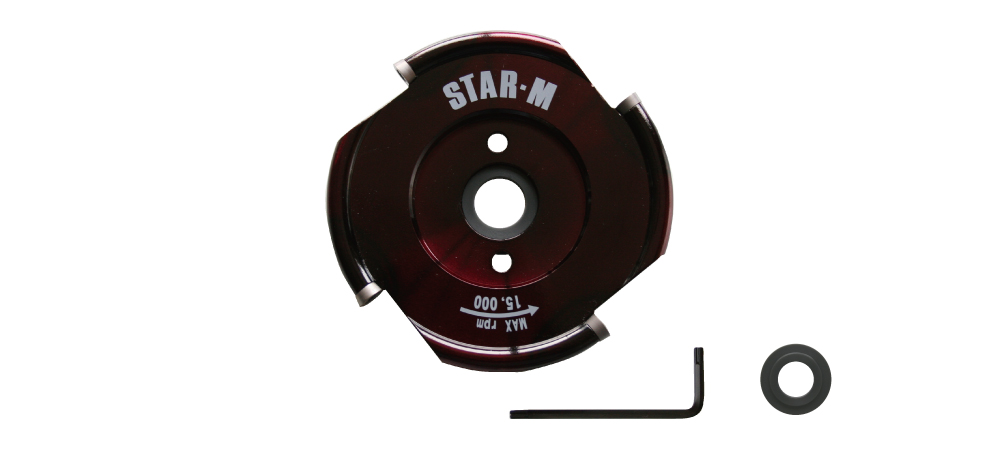

제품정보 | Model
(스타엠 No.560 에그리커터 초경| Star-m No.560 T.C.T Woodcarver)
용도(Use)
- 목재 절단 및 조각
- Four replaceable tungsten carbide blade for soft and hardwoods
특징(Features)
- R면,곡면,절단,홈굴,정확한 홈절삭,황삭 가공의 작업을 실시할 수 있습니다
- 프로 가드(별매)를 장착하면 작업시 칩의 비산을 줄일 수 있습니다
- 견목에도 사용가능합니다
초경날은 360도 사용 가능합니다
- Designed for round shape chamfering, curved surface cutting, straight cutting, grooving, mortising, rough carving
- Circle replaceable tungsten carbide teeth ensure a long blade life
사양(Specification)
적용재(Usage) | 일반 목재 견목 Wood Hard Wood |
재질(Materials) | 본체 고탄소강, 도장 마무리, 초경칩 부착 스페이서: 나일론, 몰리브덴입 Body: High carbon steel, T.C.T. blade, Paint finishing Spacer: Molybdenum steel |
| 적용 기종(Recommended tools) | 디스크 그라인더 100mm/125mm Disc Grinder (Wheel Dia 100mm/125mm)(Angle Grinder) |
| 적정 회전수(Rpm Range) | 15,000회전/분 이하 (Less than 15,000rpm) |

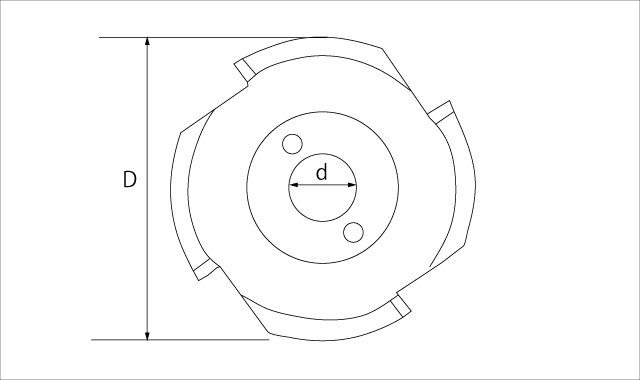

사이즈(Size


외경(Outer Dia):D
내경(Inner dia) : d
단위(Unit)(mm)
| Product No. | Outer Dia | Inner Dia | Thickness of blade |
|---|---|---|---|
| S560 | 100 | 22 | 8 |
* 부속의 스페이서 장착시는 내경 15mm가 됩니다. 스페이서만의 판매는 없습니다.
* When attaching the spacer, the inner diameter is 15mm
전용 칩 & 나사 세트 (각4)
Replaceable T.C.T Blade & Screws
| Product No. | Screw Size |
|---|---|
| S560a | M3X8 |
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
사용 예 | How to use

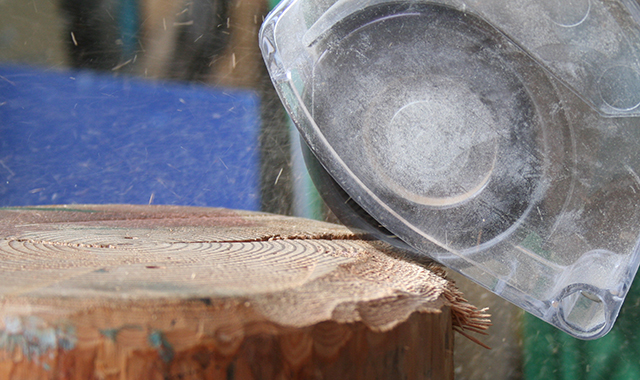

R면 가공
Round shape chamfering

곡면 가공
Curved surface cutting

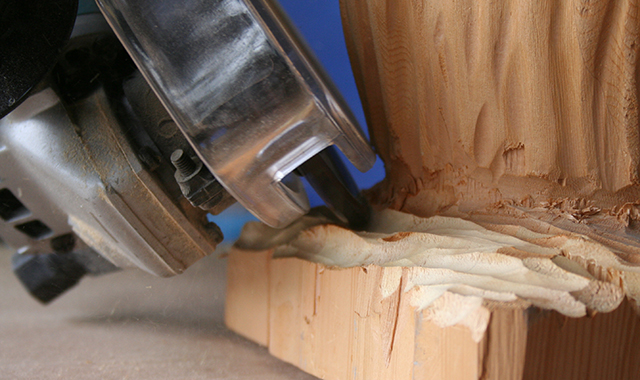

황삭 가공
Rough carving

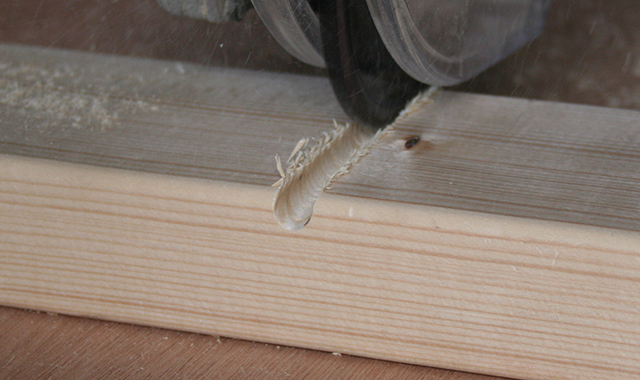

홈 가공
Grooving

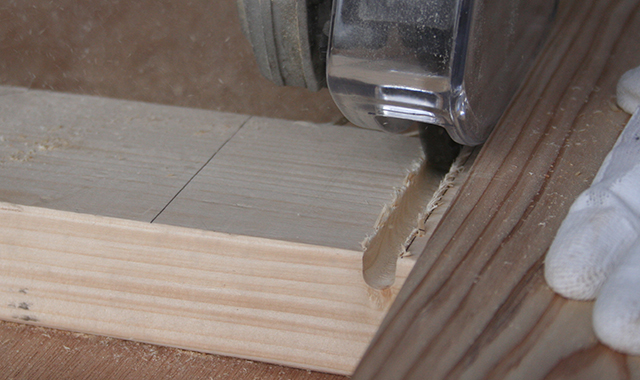

정확한 홈 절단 가공
Mortising

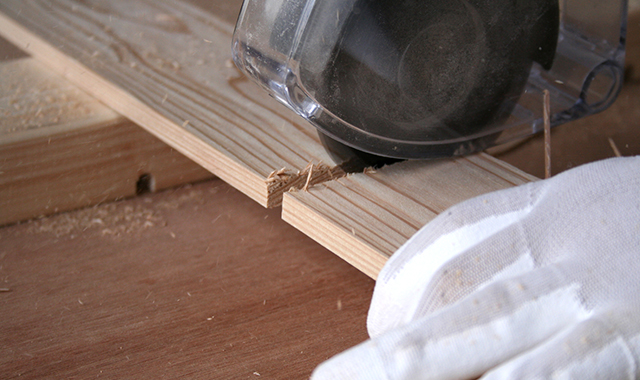

절단 가공
Straight cutting
영상 | Movie
