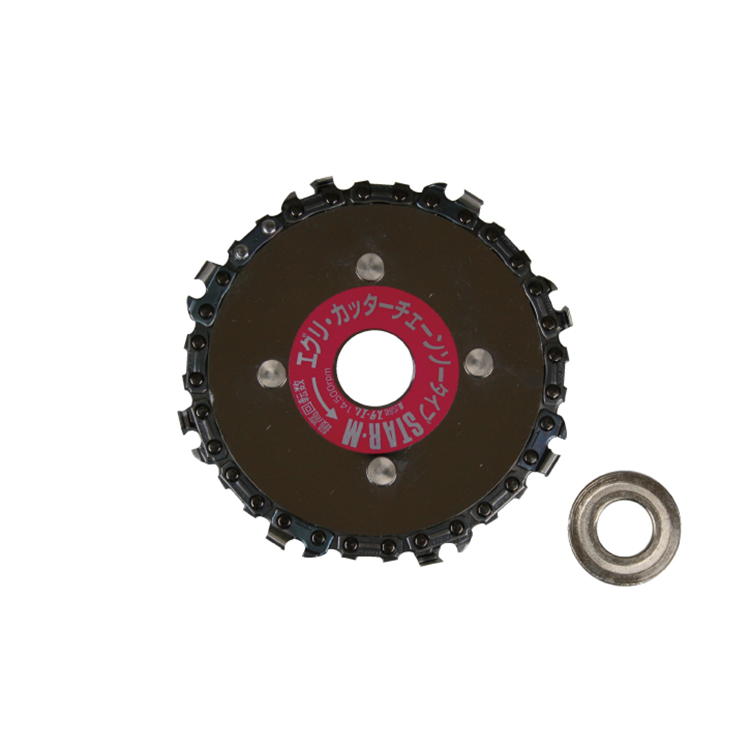

제품정보 | Model
(스타엠 No.540 에그리커터 체인형| Star-m No.540 Wood carver chainsaw type)
용도(Use)
- 목재, 얼음 절단 및 조각
- For carving wood and sculpting ice
특징(Features)
- R면,곡면,절단,홈굴,정확한 홈절삭,황삭 가공의 작업을 실시할 수 있습니다
- 프로 가드(별매)를 장착하면 작업시 칩의 비산을 줄일 수 있습니다
- Designed for round shape chamfering, curved surface cutting, straight cutting, grooving, mortising, rough carving
사양(Specification)
적용재(Usage) | 일반 목재 얼음 Wood Ice |
| 적용 기종(Recommended tools) | 디스크 그라인더 100mm/125mm Disc Grinder (Wheel Dia 100mm/125mm)(Angle Grinder) |
| 적정 회전수(Rpm Range) | 14,500회전/분 이하 (Less than 14,500rpm) |

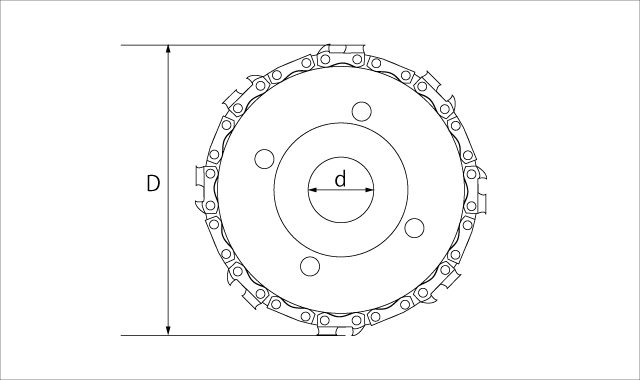

사이즈(Size


외경(Outer Dia):D
내경(Inner dia) : d
단위(Unit)(mm)
| Product No. | Outer Dia | Inner Dia | Thickness of blade |
|---|---|---|---|
| S540 | 107 | 20 | 6 |
* 부속의 스페이서 장착시는 내경 15mm가 됩니다. 스페이서만의 판매는 없습니다.
* When attaching the spacer, the inner diameter is 15mm
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
사용 예 | How to use

얼음 황삭
Round shape chamfering
연마(How to re-sharpen)

체인 톱니를 위아래로 움직입니다
Move the chainsaw file up and down

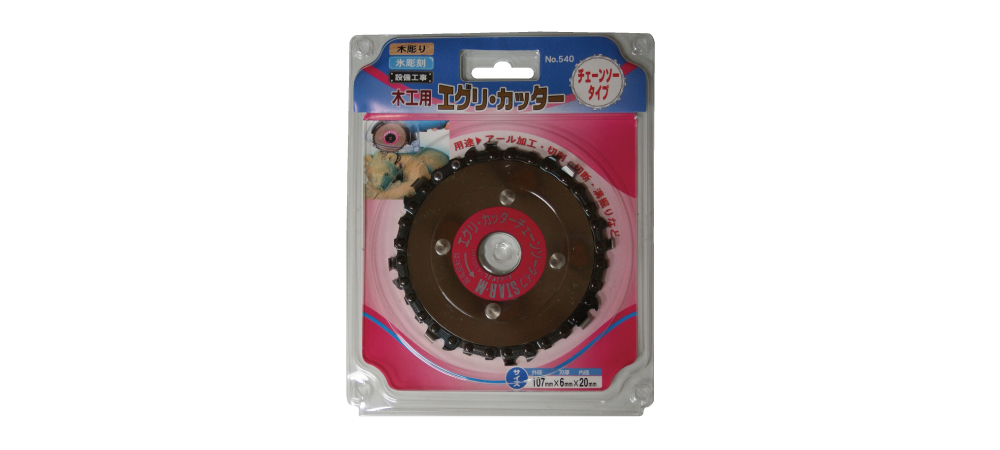

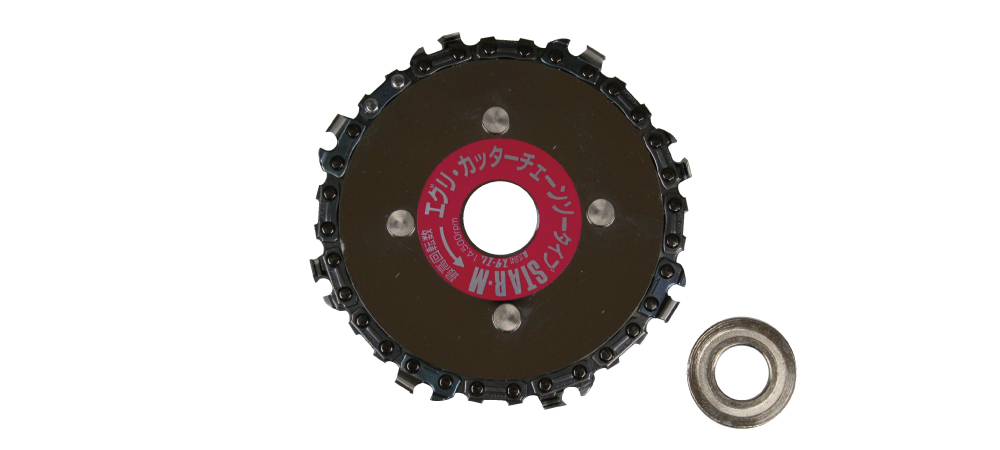

상세사진 | Pictures
