제품정보 | Model

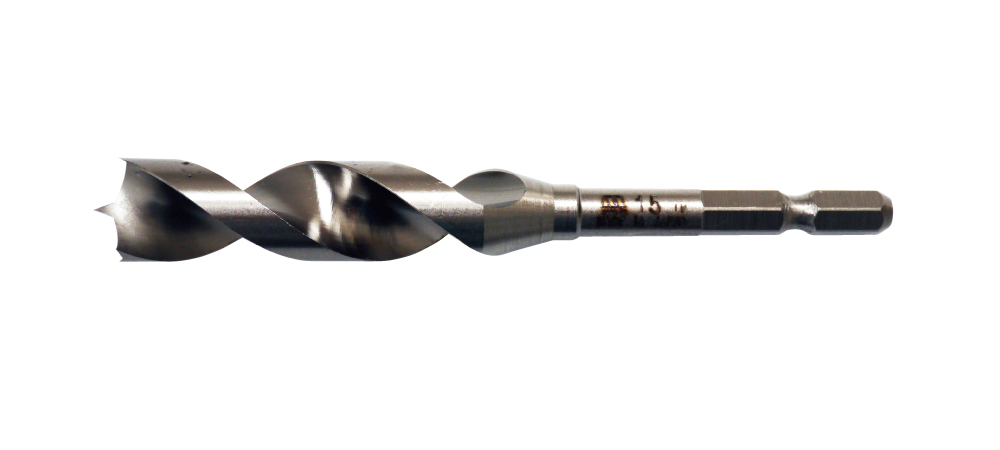

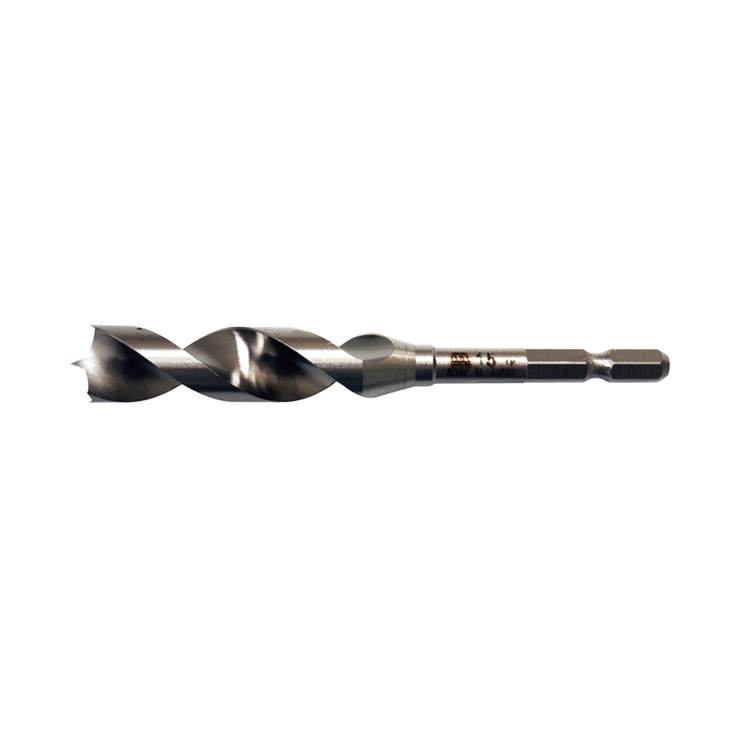

(스타엠 No.601 멀티비트(竹)| Star-m No.601 Multi Borer)
용도(Use)
- 다양한 재료에 드릴링
- For drilling holes in various materials
특징(Features)
- 스토퍼 부착으로 일정 깊이의 드릴링이 가능합니다
- 추는 힘을 가한 분만큼 진행해 나가므로 컨트롤이 하기 쉽고 관통 구멍, 멈춤 구멍 작업에도 적합합니다
- 발리 균열이 적은 아름다운 드릴링이 가능합니다
- 아크릴이나 대나무 등의 깨지기 쉬운 소재에의 천공에도 적합합니다
- 팁은 예각형입니다
- 재질에 대한 위치 결정이 간단합니다
- It is easy to control because it advances by the amount of pushing force, and it is also suitable for through hole and stop hole work
- Perfectly finished holes withou"blow out"
- The burr-free special brad point for quick, on-target starts & smooth cutting
사양(Specification)
적용재(Usage) | 일반 목재 견목 대나무 PVC 아크릴 경질 고무 Wood Hard Wood Bamboo Rubber Acrylic board PVC |
| 재질(Materials) | 고탄소강 (High Carbon Steel) |
| 적용 기종(Recommended tools) | 전기 드릴 임팩트 드라이버 14.4v 이상 드릴 드라이버 14.4v 이상 볼반 Electric Power Drill Quick Change Impact Driver(Over14.4v) Cordless Drill(Over 14.4v) Drill Press Machine |
| 적정 회전수(Rpm Range) | 3,000회전/분 이하 (Less than 3,000rpm) |
| 축 마크를 보는 방법(Shank Shape) | : 육각축 |
| 주의사항(Caution) | 수지재에의 드릴링에는 첨판을 추천합니다 We recommended placing a splice plate for drilling to the resin material |

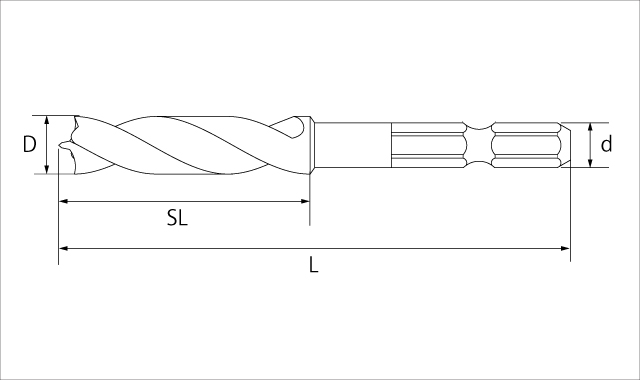

사이즈(Size


사이즈(Size):D
전장(Overall Length) : L
깊이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
13,14,16,17,19,20mm 추가되었습니다
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| S6013 | 3 | 80 | 35 | 6.35![]() |
| S60135 | 3.5 | |||
| S6014 | 4 | |||
| S60145 | 4.5 | |||
| S6015 | 5 | |||
| S60155 | 5.5 | |||
| S6016 | 6 | |||
| S60165 | 6.5 | |||
| S6017 | 7 | |||
| S60175 | 7.5 | 40 |
| S6018 | 8 | 80 | 40 | 6.35![]() |
| S60185 | 8.5 | |||
| S6019 | 9 | |||
| S60195 | 9.5 | |||
| S60110 | 10 | |||
| S601105 | 10.5 | |||
| S60111 | 11 | |||
| S601115 | 11.5 | |||
| S60112 | 12 | |||
| S60115 | 15 | 116 | 66 |
| S60118 | 18 | 116 | 66 | 6.35 |
| S60121 | 21 | 125 | 75 |
1박스: 6입
QTY(Inner Box: 6pcs
제조사(Maker)
스타엠 | Star-m (Made in Japan) |

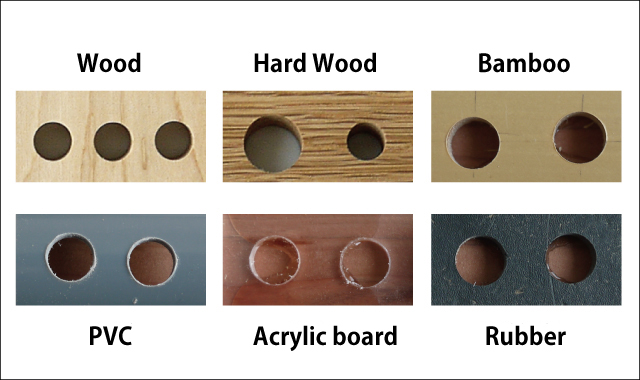

다재료에 드릴가능 | Can drill holes in various materials

이름은 대나무용 드릴입니다만, 여러종류의 재질에 구멍을 내기 용이합니다. 목재는 물론, 일반적으로 깨지기 쉽다고하는 아크릴 등에도 드릴링이 가능합니다.
Hard to break, hard to get burrs
The name is a bamboo drill, but it actually supports drilling holes in various materials. It is possible to drill hholes not only in wood but also in acrylic, which is generally said to be fragile. Easy to recognize its sharpenes of the drilling. not only for drilling into wood & bamboo without burrs
동영상 (Movie)
대나무 빛을 만드는 법(How to make Bamboo light)

[준비물]
대나무
LED 라이트
디자인 종이
투명 테이프(OPP 테이프)
마스킹 테이프
고정용 받침대
드릴 드라이버 or 임팩트 드라이버
대나무 드릴 (사이즈는 디자인에 따라)
[Things to prepare]
Bamboo
LED Light
Design paper
Transparent tape
Masking tape
Stand for fixing
Cordless Drill or Quick Change Impact Driver
Multi Borer(The size depends on the design)

1. 대나무에 디자인 종이를 마스킹 테이프로 임시 고정합니다. 디자인은 분필 등으로 대나무에 직접 그려도 OK입니다
Temporarily fix the design paper to the bamboo with masking tape. The design can be drawn directly on bamboo with chalk

2. 투명 테이프로 디자인지를 대나무에 붙입니다. 테이프는 부분적이지 않고 틈이 없도록 전체에 붙여 주십시오.
Attach the design paper to the bamboo with transparent tape. Apply the tape to the entire surface, not only partially, but without any gaps

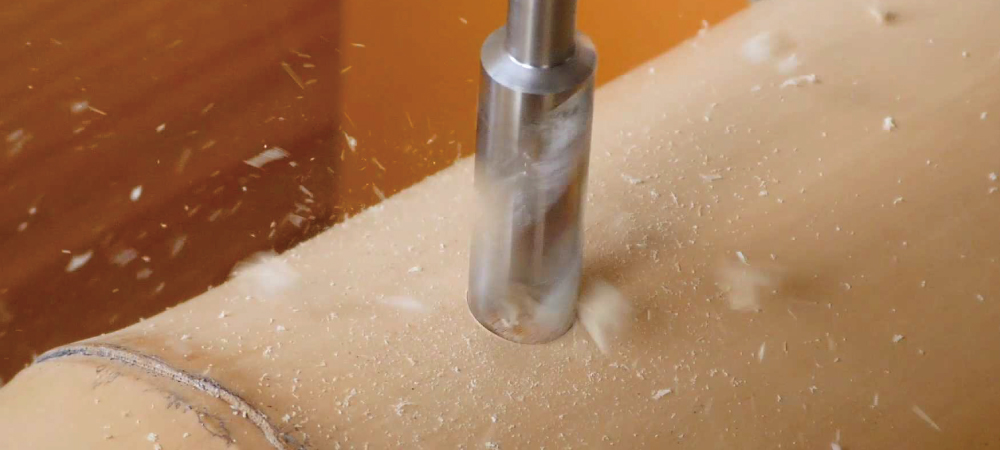

3. 고정용 받침대에 대나무를 세트하고 대나무용 드릴로 구멍을 뚫어 갑니다. 대나무가 움직이지 않도록 단단히 고정하고 구멍을 뚫어 주십시오
Set the bamboo on the fixing table and make a hole with a bamboo drill. Please fix the bamboo firmly so that it does not move and make a hole

4. 구멍을 뚫고 끝나면 디자인지를 떼어냅니다
After making the holes, remove the design paper

5. 자르기를깨끗이제거하면완성입니다
After removing the chips cleanly it is completed

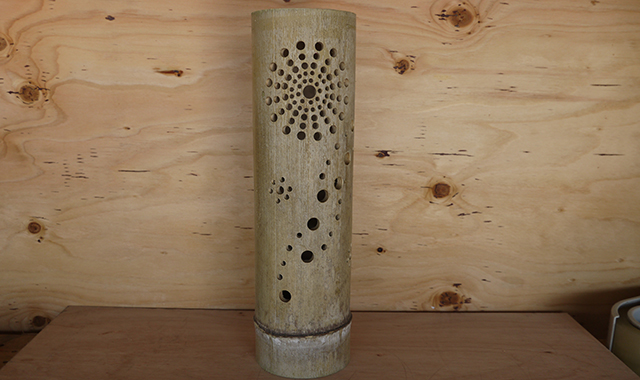

6. 라이트를 넣고 점등!
Turn on the light
상세사진 | Pictures
