제품정보 | Model

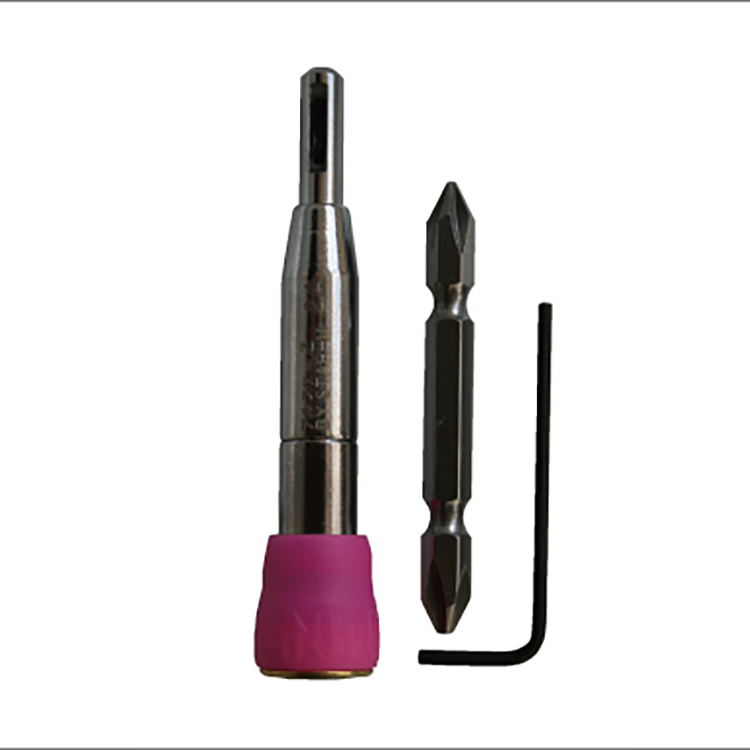

(스타엠 No.503w 원터치 힌지센터 비트| Star-m No.503w self-centering hinge drill)
용도(Use)
- 정반, 난간 쇠장식의 접시 구멍의 중심에 구멍을 내기위한 용도
- Make a hole in the center of the countersink hole of the hinge and handrail metal fitting with one shot
특징(Features)
- 설치 브래킷의 접시 구멍의 중심에 하공이 벌어지므로 나사를 조일 때 쇠장식이 어긋나지 않습니다.
- 소켓은 상하 어느 쪽으로 움직여도 설치, 분리가 가능합니다
- 부속의 비트를 전동 공구에 장착한 채로, 본 제품의 설치가 가능합니다
- 가이드를 분리하면 철공 드릴로도 사용할 수 있습니다
- Quick on target and score perfect hiy in one-shot deal for hinge
- The socket is detachable for both directions up and donw
- Attached double-end bit remains on the electric power drill, it can be used
- Take off the guide, it can be used for steel drill
사양(Specification)
적용재(Usage) | 일반 목재 (Wood) 철공 (Iron) 경금속 (Light metal) 합성수지 (Plastic) |
| 재질(Materials) | 본체: 스틸 소켓: 수지 센터 드릴: 하이스강 양두 비트: 크롬 바나듐강 Body: High carbon Steel Socket: Rubber Center Drill: H.S.S. Double-end bit: High carbon Steel |
| 적용 기종(Recommended tools) | 임팩트 드라이버 14.4V 이상 드릴 드라이버 14.4V 이상 Quick Change Impact Driver(Over14.4V) Cordless Drill(over 14.4v) |
| 적정 회전수(Rpm Range) | 3,000회전/분 이하 (Less than 3,000rpm) |
사이즈(Sizes)


전장(Overall Length) : L
단위(Unit)(mm)
| Product No, | Size | Inner Drill size | Overall Length |
|---|---|---|---|
| S503wss | SS | 2.0 | 83 |
| S503Ws | S | 2.4 | 88 |
| S503wm | M | 2.8 | 94 |
1박스: 6입
QTY(Inner Box: 6pcs
사이즈(Size): D
전장(Overall Length): L
축(Shank Shape): d
단위(unit): mm
Inner Drill
| Product No, | Size | Overall Length | Shank Shape |
|---|---|---|---|
| S503w20 | 2.0 | 56 | 2.0![]() |
| S503w24 | 2.4 | 60 | 2.4![]() |
| S503w28 | 2.8 | 68 | 2.8 |
1박스: 6입
QTY(Inner Box): 6pcs
Double-end bit
| Product No. | Size |
|---|---|
| S503wa | #1 & #2 |
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
사용방법(How to Use)

1. 임팩트 드라이버에 부속비트를 설치한다
Attach the double-end bit to a Quick Change Impact Driver

2. 비트에 본 제품을 설치한다(양방향으로 탈착 가능)
Attach self-centering hinge bit to the double-end bit

3. 접시구멍에 가이드 선단부분을 맞추고 하공을 뚫는다
Make pre-hole on the center of countersink

4. 센터 한발을 떼어 ① 의 상태로 한다(양방향으로 탈착 가능)
Remove the self-centering hinge bit
5. 나사를 조인다
Tighten the screws
동영상 | Movie
