제품정보 | Model
(스타엠 No.75S 테퍼포인트 비트| Star-m No.75S Short Taper Point Bit Hex Shank)
용도(Use)
- 목재에 짧은 드릴링
- Makes pre-holes for nail or screw to prevent breaking the wood
특징(Features)
- 아래 구멍을 열어 나무 나사와 못을 칠 때 나무 균열을 방지합니다
- 테이퍼 모양이므로 톱밥 배출이 원활합니다
- 재료에 드릴링이 쉬운 형상입니다
- DIY등에도 사용하기 쉬운 길이입니다
- Easy to use for shorter nails or screws, most recommended for DIY Users
- Tapered and single flute bit style featured good bite to the wood and smooth wood chip ejection
사양(Specification)
적용재(Usage) | 일반 목재 (Wood) 수지 (Plastics) 석고 보드 (Fiber Cement) 파티클 보드 (Particle Board) |
| 재질(Materials) | 고탄소강 (High Carbon Steel) |
| 적용 기종(Recommended tools) | 임팩트 드라이버 14.4V 이상 드릴 드라이버 14.4V 이상 Quick Change Impact Drive r(Over14.4V) Electric Power Drill |
| 적정 회전수(Rpm Range) | 3,000회전/분 이하 (Less than 3,000rpm) |
| 축 마크를 보는 방법(Shank Shape) | : 육각축 |

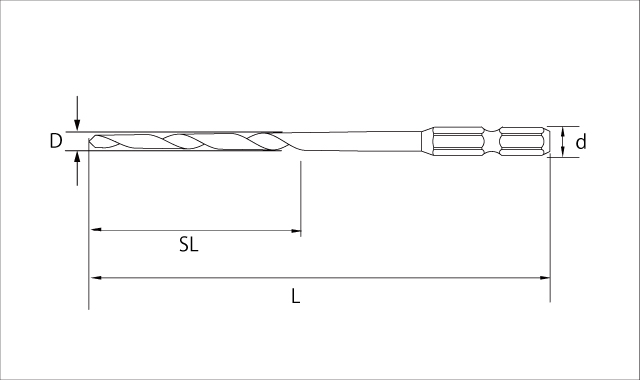

사이즈(Sizes)
Single


사이즈(Size):D
전장(Overall Length) : L
나사 길이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
| Product No. | Set Type | Set Description |
|---|---|---|
| S75sA | A Set | 3・4・5mm(1pc) |
| S75sB | B Set | 4・5・6mm(1pc) |
| S75s43 | 3mm Set | 3mm(3pcs) |
| S75s4 | 4mm Set | 4mm(3pcs) |
| S75s5 | 5mm Set | 5mm(3pcs) |
1박스: 12입
QTY(Inner Box: 12pcs
Dimension list
| Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|
| 3 | 90 | 35 | 6.35 |
| 4 | 105 | 50 | |
| 5 | 115 | 60 | |
| 6 |
제조사(Maker)
스타엠 | Star-m (Made in Japan) |

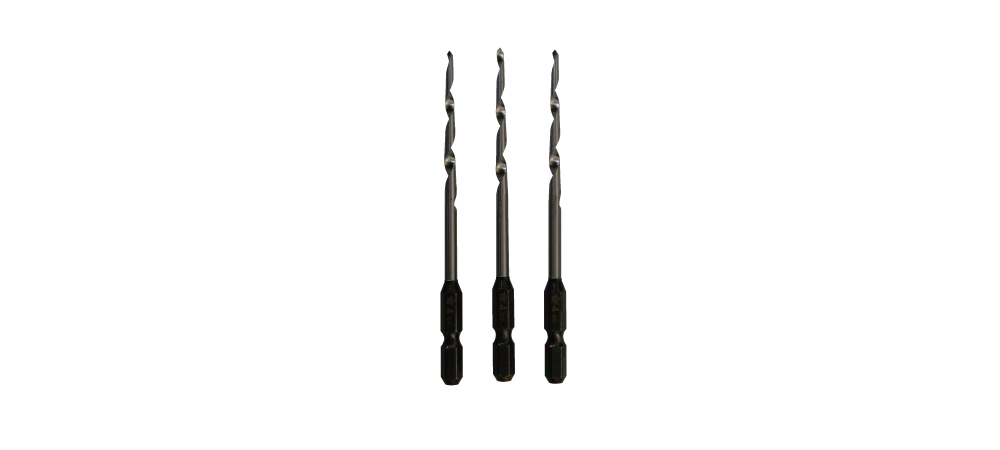

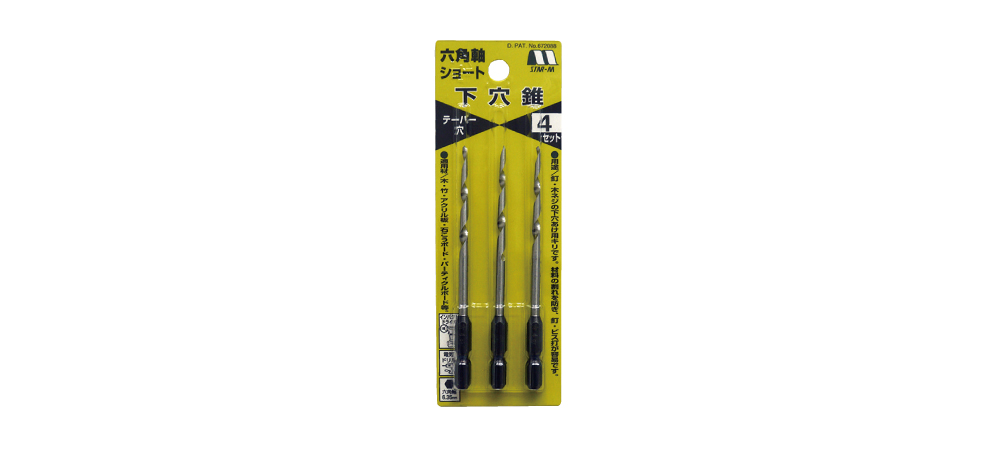

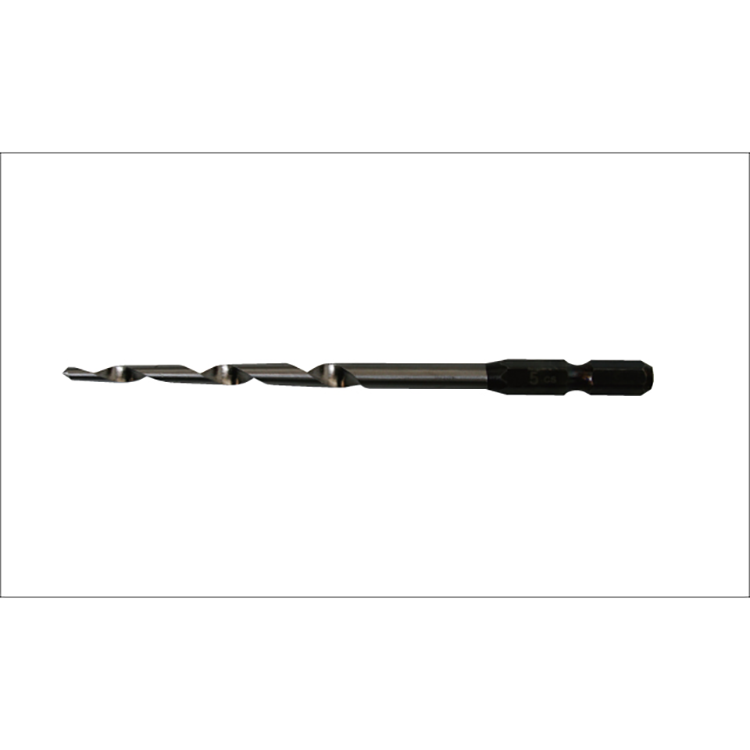

상세사진 | Pictures
