제품정보 | Model

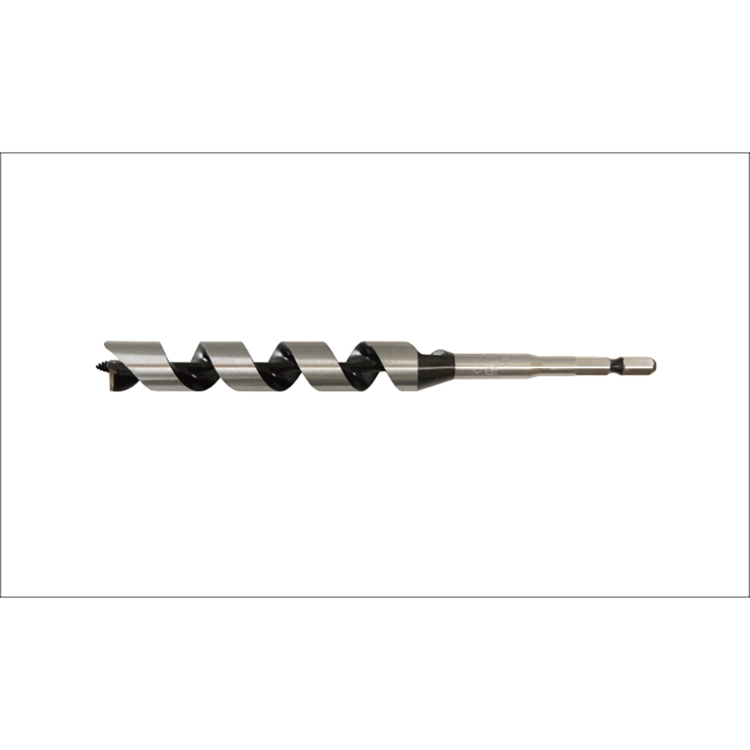

(스타엠 No.7M 임팩용 미들기리| Star-m No.7M Impact Bit "Middle Type")
용도(Use)
- 임팩트 드라이버로 약간 깊은 관통 드릴링
- Pass completely through to the other side
특징(Features)
- 전사이즈가 임팩트 드라이버 대응의 6.35mm 육각축입니다
- 팁 나사와 부상 블레이드를 기존 드릴보다 작게 함으로써 임팩트 드라이버 사용 시 절삭 저항을 억제하여 배터리 수명이 20% 증가합니다
- 드릴 팁이 끝 나사 타입입니다
- 앞 나사의 회전력을 이용하여 누를 필요 없이 부드러운 드릴링이 가능합니다
- Burr-free lead screw for quick, on-target starts & smooth cutting
- Energy saving 20% Up by special lead screw and cutting edge
사양(Specification)
적용재(Usage) | 일반 목재 (Wood) |
| 재질(Materials) | 고탄소강 (High Carbon Steel) |
| 적용 기종(Recommended tools) | 임팩트 드라이버 14.4V 이상 드릴 드라이버 14.4V 이상 Electric Power Drill(over 14.4v) Quick Change Impact Driver(over 14.4V) Cordless Drill |
| 적정 회전수(Rpm Range) | 3,000회전/분 이하 (Less than 3,000rpm) |
| 축 마크를 보는 방법(Shank Shape) | :육각축(Hexagon) |

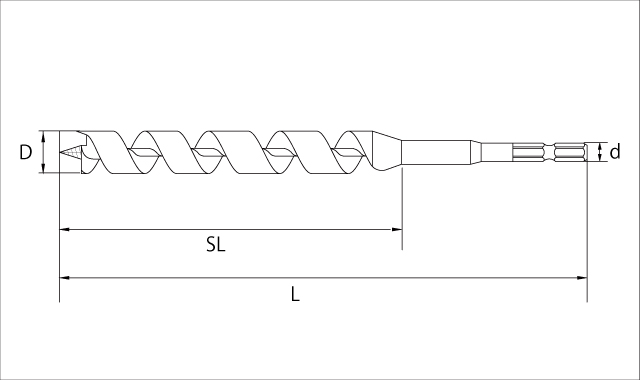

사이즈(Sizes)


사이즈(Size):D
전장(Overall Length) : L
나사 길이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
No.7M
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| S7m03 | 3 | 110 | 60 | 6.35![]() |
| S7m04 | 4 | 120 | 70 | |
| S7m05 | 5 | 140 | 90 | |
| S7m06 | 6 | 160 | 100 | |
| S7m07 | 7 | 170 | ||
| S7m08 | 8 | |||
| S7m09 | 9 | 180 | 110 | |
| S7m10 | 10 | 190 | 120 | |
| S7m11 | 11 | |||
| S7m12 | 12 |
| S7m13 | 13 | 190 | 120 | 6.35![]() |
| S7m14 | 14 | 200 | 130 | |
| S7m15 | 15 | |||
| S7m16 | 16 | |||
| S7m17 | 17 | |||
| S7m18 | 18 | |||
| S7m19 | 19 | |||
| S7m20 | 20 | 205 | 135 | |
| S7m21 | 21 | |||
| S7m22 | 22 |
| S7m23 | 23 | 205 | 135 | 6.35![]() |
| S7m24 | 24 | |||
| S7m25 | 25 |
1박스: 6입
QTY(Inner Box: 6pcs
연마(re-sharpen)
컷팅 엣지를 날카롭게하는 방법(Sharpening the cutting edge)

①컷팅 엣지가 45도가 되도록 제품을 기울여 평행하게 줄을 맞춘다
①Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge.

②마모된 컷팅엣지를 새로운 날이 나올 때까지 줄을 댄다
② Touch the left edge of the file to the bit's spine which will be used as a guide. File forward repeadtedly only. Do not file in reverse
스푸어 날을 날카롭게하는 방법(Sharpening the spur)

① 스푸어 날의 안쪽을 연마하고 마모된 부분이 없어질 때 까지 연마한다
① If the spur has any burrs, lightly file them to create a clean edge.

② 스푸어 날은 안쪽이 둥글게 되도록 줄을 대고, 뒤에서부터 바깥쪽으로 버(Burr)를 제거하며 마무리한다
②Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
제조사(Maker)
스타엠 | Star-m (Made in Japan) |

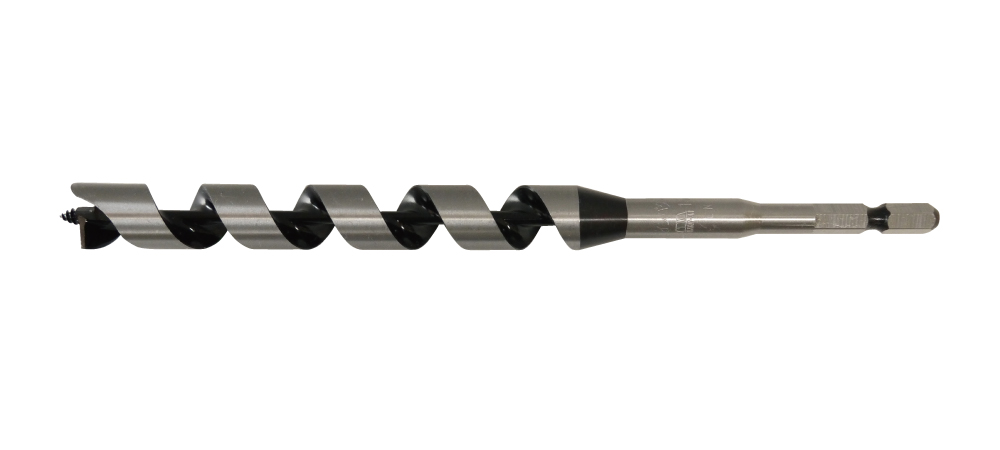

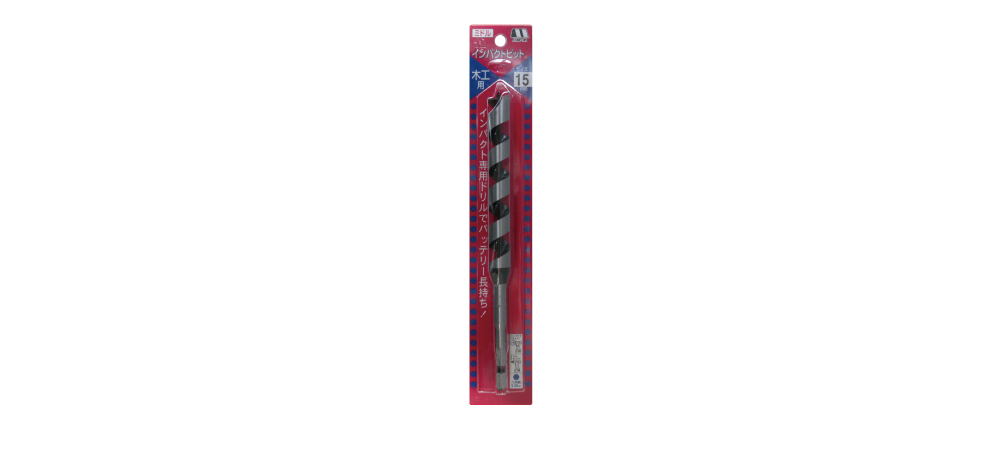

상세사진 | Pictures
