제품정보 | Model

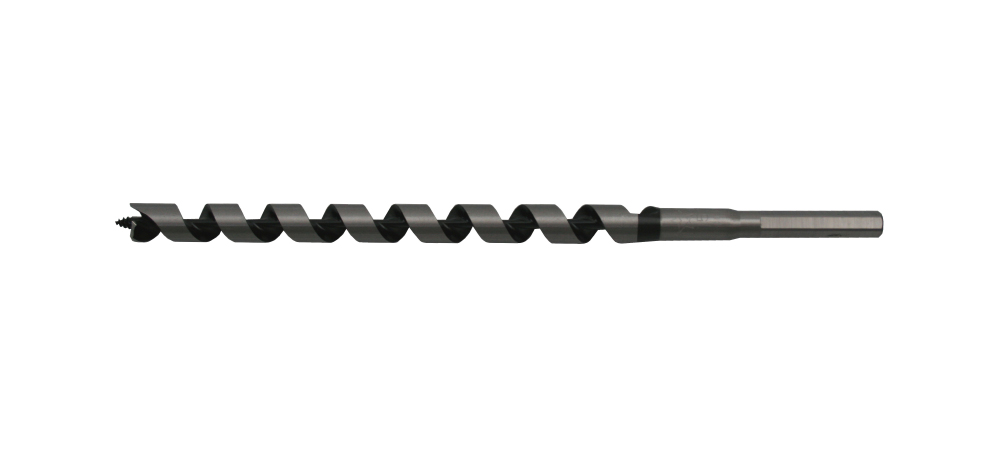

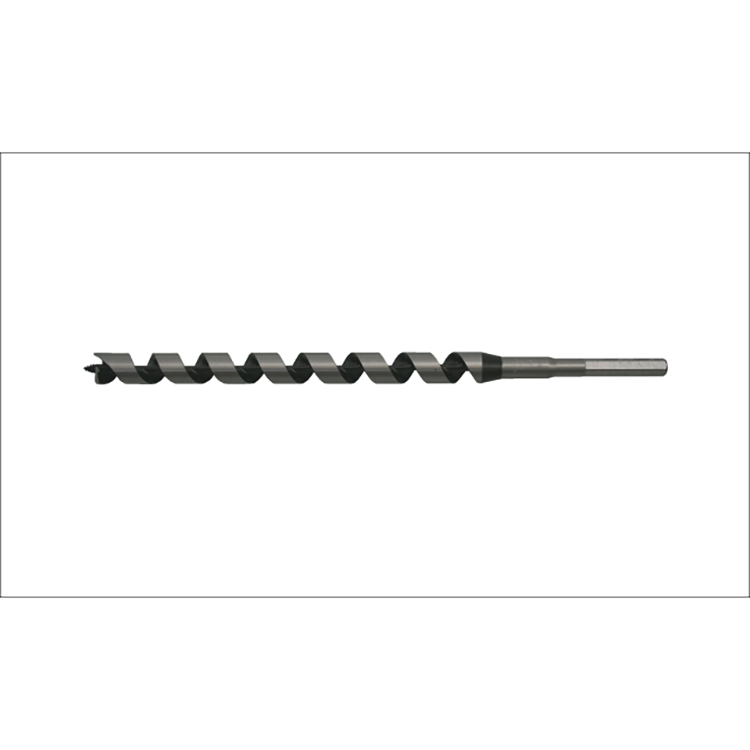

(스타엠 No.4 드릴비트 | Star-m No.4 Power Drill Auger Bit )
용도(Use)

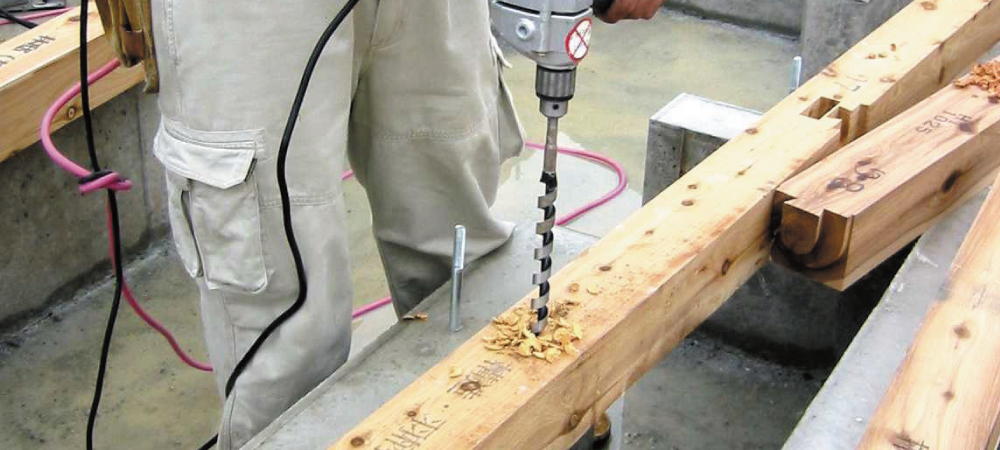

- 깊은 관통 드릴링
- Deep boring
특징(Features)
- 드릴 팁이 끝 나사 타입입니다
- 앞 나사의 회전력을 이용하여 누를 필요 없이 부드러운 드릴링이 가능합니다
- 전기 드릴로 얕은 관통 구멍에서 깊은 관통 구멍까지 드릴링 가능합니다
- Burr-free lead screw for quick, on-target starts & smooth cutting
사양(Specification)
적용재(Usage) | 일반 목재 (Wood) |
| 재질(Materials) | 고탄소강 (High Carbon Steel) |
| 적용 기종(Recommended tools) | 전기 드릴 (Electric Drill) 드릴 드라이버(핸들 부착 18V 이상) |
| 적정 회전수(Rpm Range) | 3mm~19mm: 3,000회전/분 이하 (Less than 3,000rpm) 19.5mm~36mm: 1,500회전/분 이하 (Less than 1,500rpm) |
| 축 마크를 보는 방법(Shank Shape) | :육각축(Hexagon) :원축(Round) |

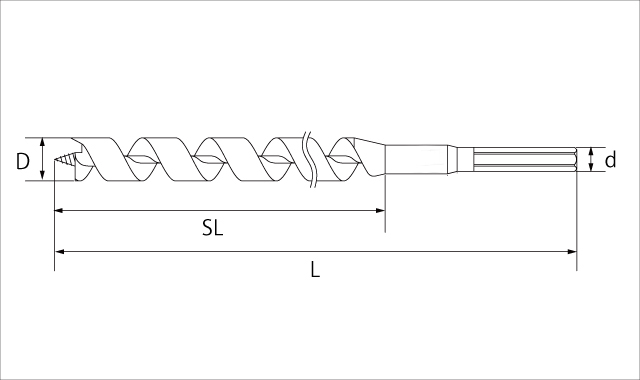

사이즈(Sizes)


사이즈(Size):D
전장(Overall Length) : L
나사 길이(Spiral Length) : SL
축경(Shank Shape) : d
단위(Unit)(mm)
Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
S403 | 3 | 150 | 100 | 2.8![]() |
| 180 | 130 | 3.2![]() | ||
S404 | 4 | 3.8![]() | ||
| 200 | 150 | 4.2![]() | ||
S405 | 5 | 4.7![]() | ||
| 210 | 5.2![]() | |||
S406 | 6 | 5.7![]() | ||
| 225 | 165 | 6.2![]() | ||
S407 | 7 | 6.7![]() | ||
7![]() | ||||
S408 | 8 | |||
240 | 180 |
S409 | 9 | 240 | 180 | 7![]() |
| 250 | 190 | |||
S410 | 10 | |||
10 | ||||
S411 | 11 | |||
| 270 | 195 | |||
S412 | 12 | |||
S413 | 13 | |||
| 290 | 210 | |||
S414 | 14 |
| 290 | 210 | 10 | ||
S415 | 15 | |||
S416 | 16 | |||
| 330 | 240 | |||
S417 | 17 | |||
S418 | 18 | |||
S419 | 19 |
330 | 240 | 12 ![]() | ||
S420 | 20 | |||
S421 | 21 | |||
S422 | 22 | |||
S423 | 23 | |||
S424 | 24 |
330 | 240 | 12 ![]() | ||
S425 | 25 | |||
S426 | 26 | |||
S427 | 27 | |||
S428 | 28 | |||
S429 | 29 |
| 330 | 240 | 12![]() | ||
S430 | 30 | |||
S431 | 31 | |||
S432 | 32 | |||
S4334 | 33 | |||
S434 | 34 | |||
S435 | 35 | |||
S436 | 36 |

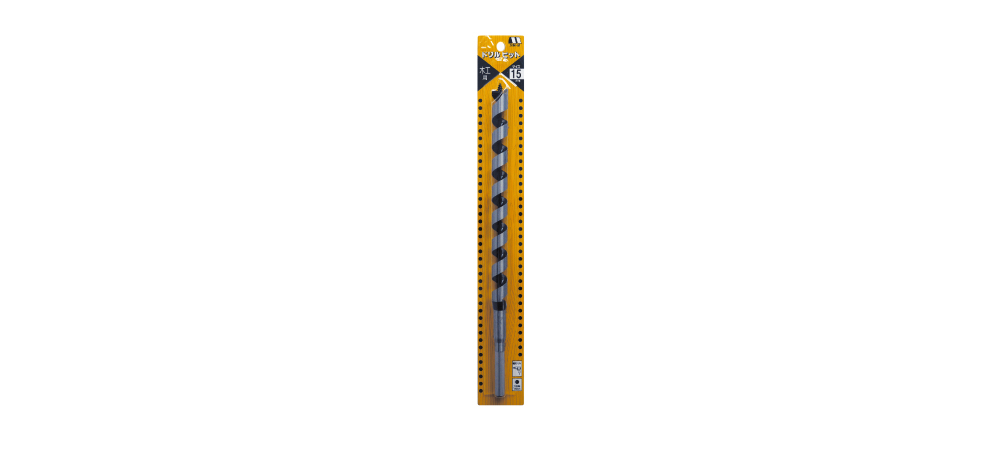

1박스: 6입
QTY(Inner Box: 6pcs
연마(re-sharpen)

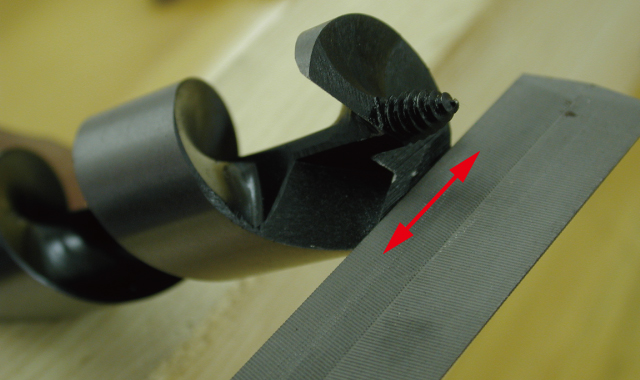

컷팅 엣지를 날카롭게하는 방법(Sharpening the cutting edge)

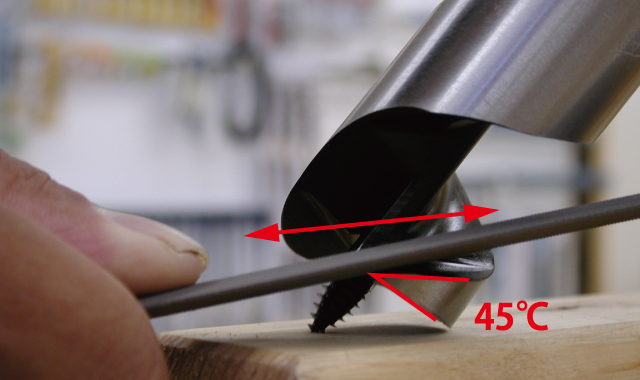

①컷팅 엣지가 45도가 되도록 제품을 기울여 평행하게 줄을 맞춘다
①Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge.

②마모된 컷팅엣지를 새로운 날이 나올 때까지 줄을 댄다
② Touch the left edge of the file to the bit's spine which will be used as a guide. File forward repeadtedly only. Do not file in reverse

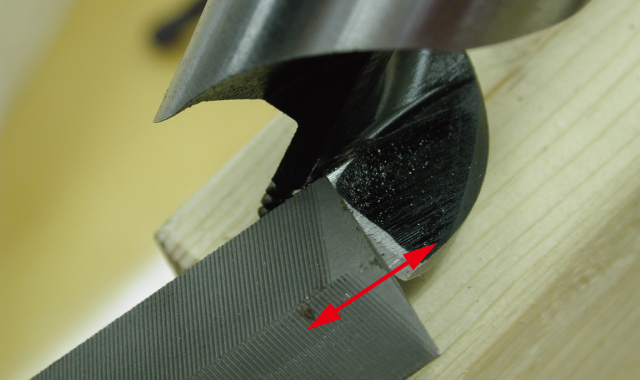

스푸어 날을 날카롭게하는 방법(Sharpening the spur)

① 스푸어 날의 안쪽을 연마하고 마모된 부분이 없어질 때 까지 연마한다
① If the spur has any burrs, lightly file them to create a clean edge.

② 스푸어 날은 안쪽이 둥글게 되도록 줄을 대고, 뒤에서부터 바깥쪽으로 칼밥(Burr)을 제거하며 마무리한다
②Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
제조사(Maker)
스타엠 | Star-m (Made in Japan) |
상세사진 | Pictures
